제품명 |
증기압

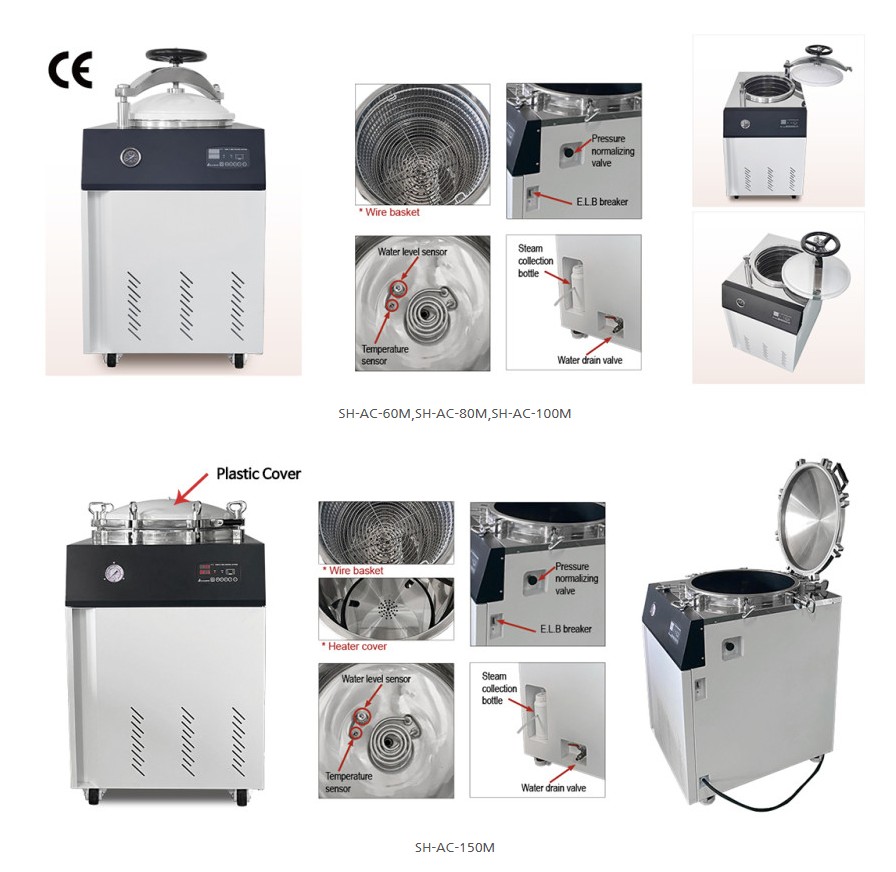

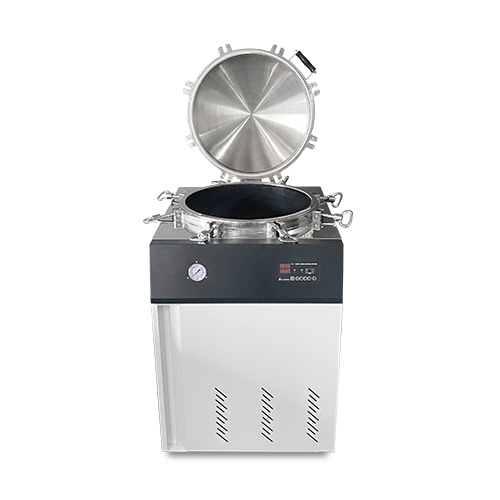

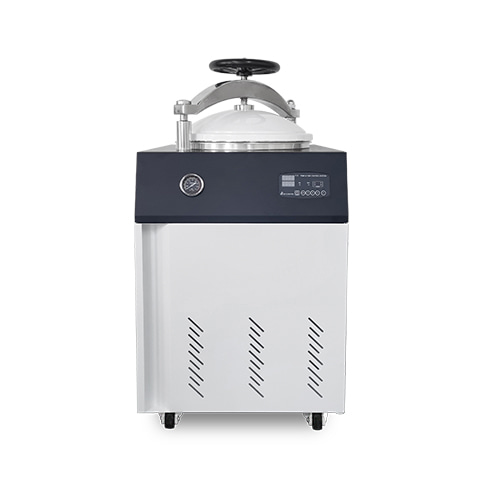

안전멸균기 Vertical-Autoclave |
증기압
안전멸균기 Vertical-Autoclave |
증기압
안전멸균기 Vertical-Autoclave |

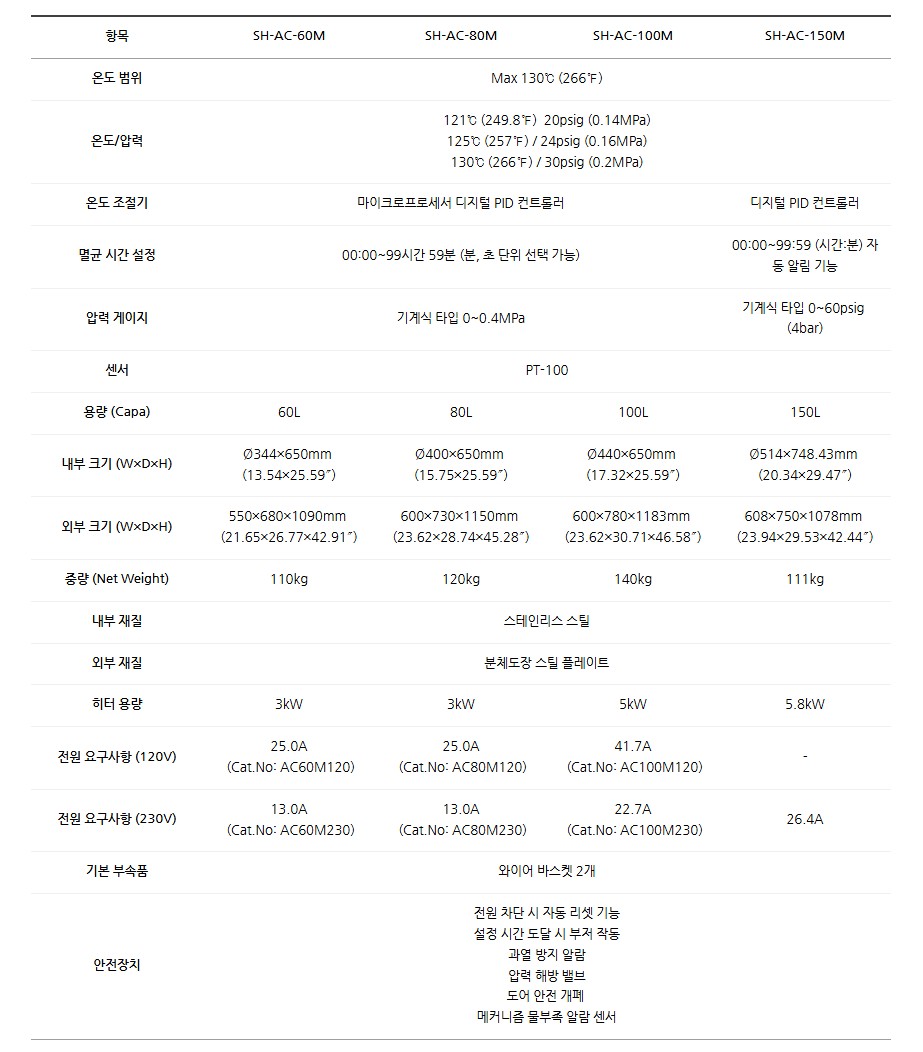

Model |

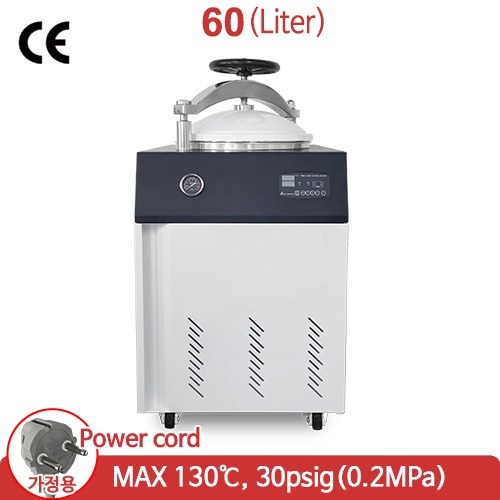

SH-AC-60M |
SH-AC-80M |
SH-AC-100M |
Temp Range |
Max 130℃(266℉) |
Max 130℃(266℉) |
Max 130℃(266℉) |
Temp&Pressure |
121℃(249.8℉) / 20psig (0.14MPa) |
121℃(249.8℉) / 20psig (0.14MPa) |
121℃(249.8℉) / 20psig (0.14MPa) |
*주변환경에 따라 변동될수 있습니다. |
125℃(257℉)
/ 24psig (0.16MPa) |
125℃(257℉) / 24psig (0.16MPa) |
125℃(257℉) / 24psig (0.16MPa) |
130℃(266℉) / 30psig (0.2MPa) |
130℃(266℉) / 30psig (0.2MPa) |
130℃(266℉) / 30psig (0.2MPa) |
Temp Controller |
Microprocessor Digital PID Controller |
Microprocessor Digital PID Controller |
Microprocessor Digital PID Controller |
Sterling Time |
00.00 to 99HR 59MIN (MIN SEC) selectable |
00.00 to 99HR 59MIN (MIN SEC) selectable |
00.00 to 99HR 59MIN (MIN SEC) selectable |
Pressure Gauge |
Mechanical type 0 to 0.4 MPa |
Mechanical type 0 to 0.4 MPa |
Mechanical type 0 to 0.4 MPa |
Sensor |
PT-100 |
PT-100 |
PT-100 |
Capa |
60 L |

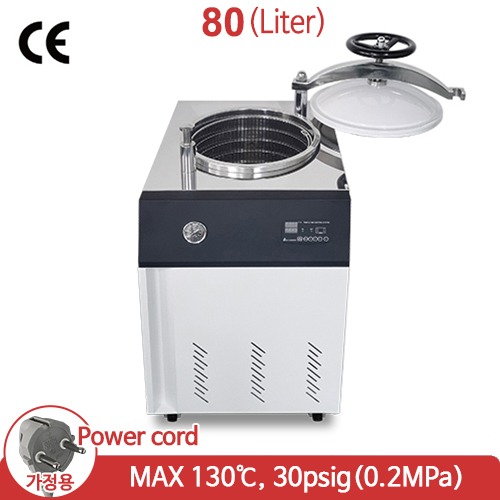

80 L |

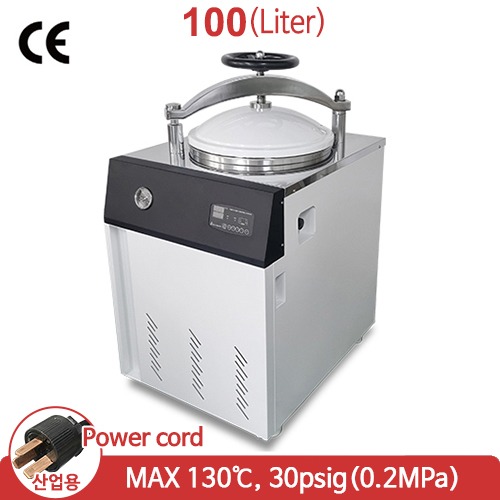

100 L |
Dimension Internal |
344Øx650Hmm |
400Øx650Hmm |
440Øx650Hmm |
13.54x25.59" |
15.75x25.59" |
17.32x25.59" |
Dimension External |
550x680x1090mm |
600x730x1150mm |
600x780x1183mm |
(W×D×H
) |
21.65x26.77x42.91" |
23.62x28.74x45.28" |
23.62x30.71x46.58" |
Net Weight |
110kg |
120kg |
140kg |
Material Internal |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Material External |
Steel Plate with Powder Heating Coated |
Steel Plate with Powder Heating Coated |
Steel Plate with Powder Heating Coated |
Heater |
3 KW |
3 KW |
5 KW |
Electrical Requirements |
25.0 A |
25.0 A |
41.7 A |
120V
,50/60Hz, 1Φ |
Cat. No. |
AC60M120 |
AC80M120 |
AC100M120 |
Electrical Requirements |
13.0 A |
13.0 A |
22.7 A |
230V
,50/60Hz, 1Φ |
Cat. No. |
AC60M230 |
AC80M230 |
AC100M230 |
