셀 컬쳐 플레이트와 인써트 BRANDplate® Cell Culture Plate & Insert





■ Manual & Automated Cell & Tissue Culture용
■ 24 Well Standard Plate & 6 Well Special Plate (PS재질, Sterile)
■ pureGrade™ S (Untreated) & cellGrade™ plus (Hydrophilic Cell Culture)
■ Side Feed Port in the Well for Changing Media with Minimal Disruption
■ Perfect for Use with Pipetting Robot
■ Especially for Tissue Culture : Inserts with Inlet Channel
■ Manufactured according to Requirements in ANSI/SLAS Standard 1 & 4
■ Non-cytotoxic according to ISO 10 993-5, Endotoxins-free (< 0.01 EU/mL)
■ Free from DNA, DNase & RNase
■ Sterile according to ISO 11137 & AAMI Guidelines, SAL 10-6
Pore size | Membrane / Pore size Application Example |
---|
0.4 um | Co-culture, Transport Study, Secretion Study, Cell Polarity Study, etc. |
1.0 um | Co-culture, Transport Study, Secretion Study, etc. |
3.0 & 8.0 um | Migration Studies, Chemotaxis Study, Metastasis Experiment, etc. |
BRANDplates® Microplate, Sterile, with Lid & Condensation Ring, 개별포장
Cat. No | Model | Description | Surface |
---|
P04-59-761 | 782880 | 24-well Standard | pureGrade™ S |
P04-59-763 | 782881 | 6-well |
P04-59-765 | 782890 | 24-well Standard | cellGrade™ plus |
P04-59-767 | 782891 | 6-well |

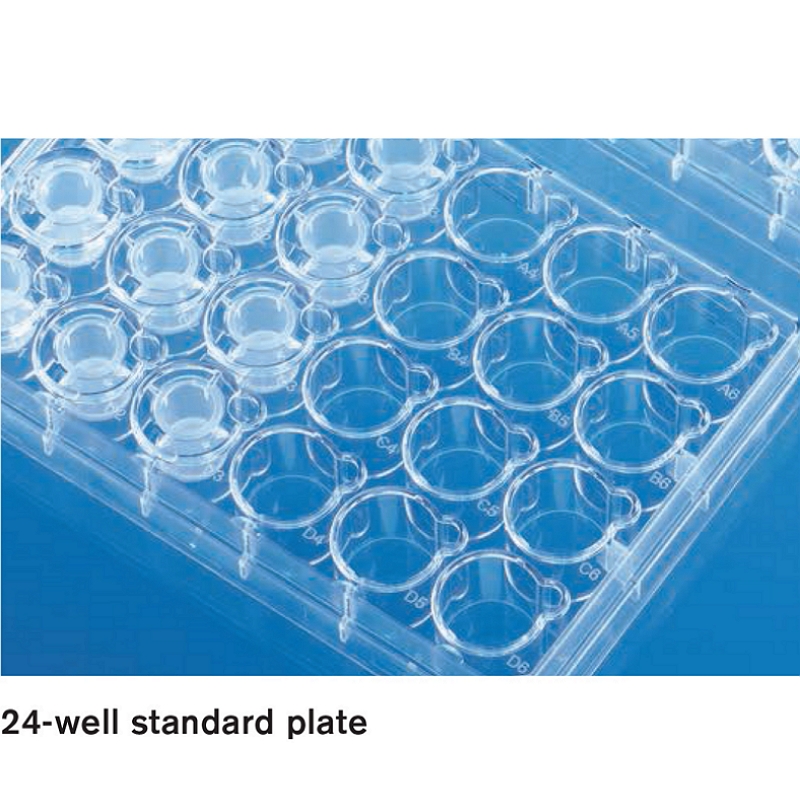

* 24-well Standard Plate : 24 Individually Fillable Well, 4 Insert Strip 또는 개별 Insert 와 사용 가능

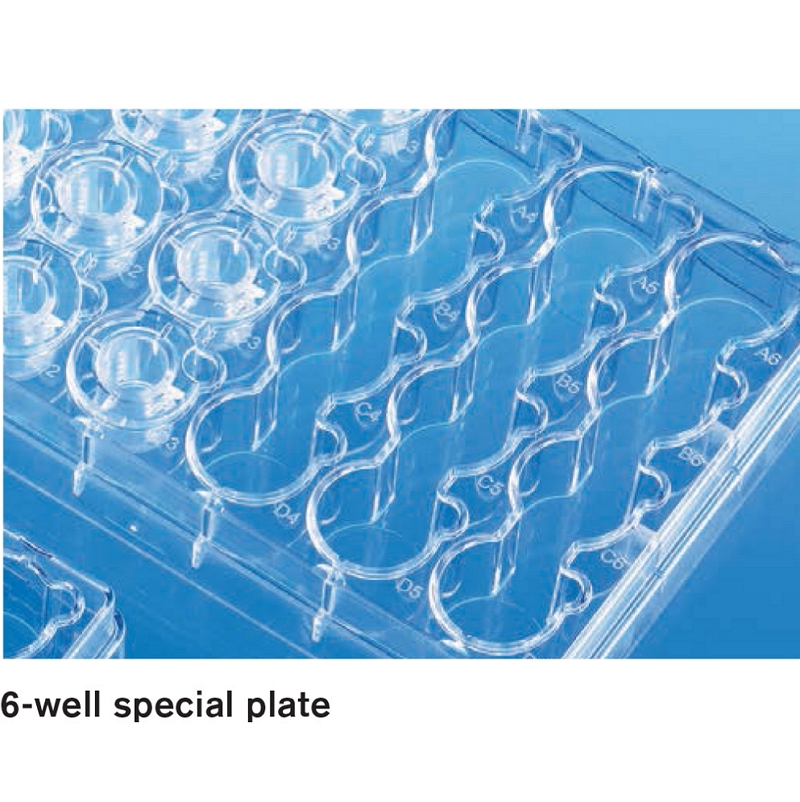

* 6-well Special Plate : 4 Well이 하나로 연결된 형태, 4 Insert Strip 과 사용하기에 알맞음

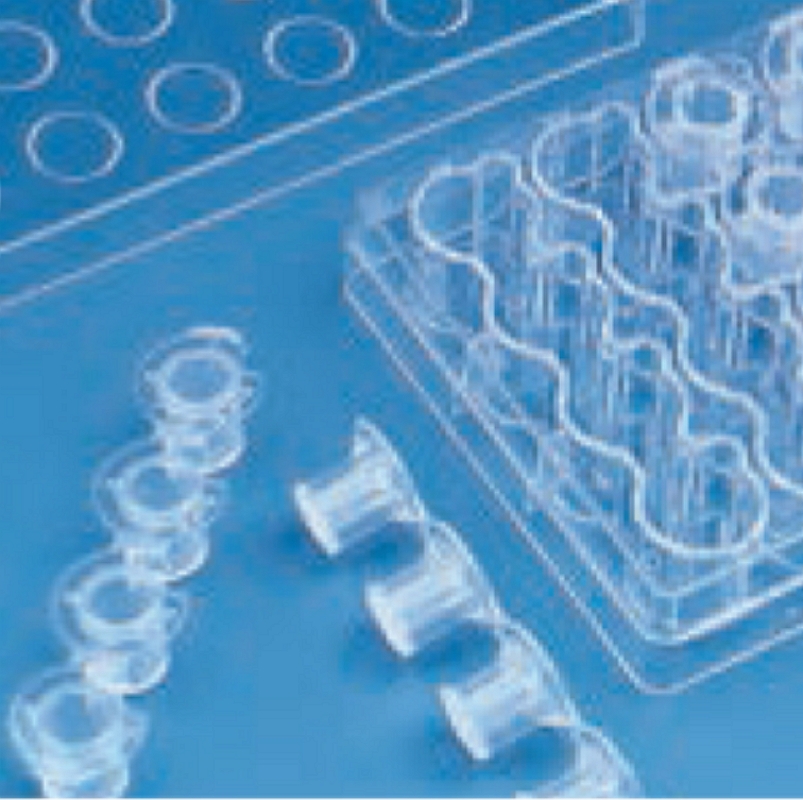

BRANDplates® Insert Strip
- PS. cellGrade™ plus Surface, Sterile, Strips of 4 Insert (Divisible), 개별포장
Cat. No | Model | Description | Membrane | Pore |
---|

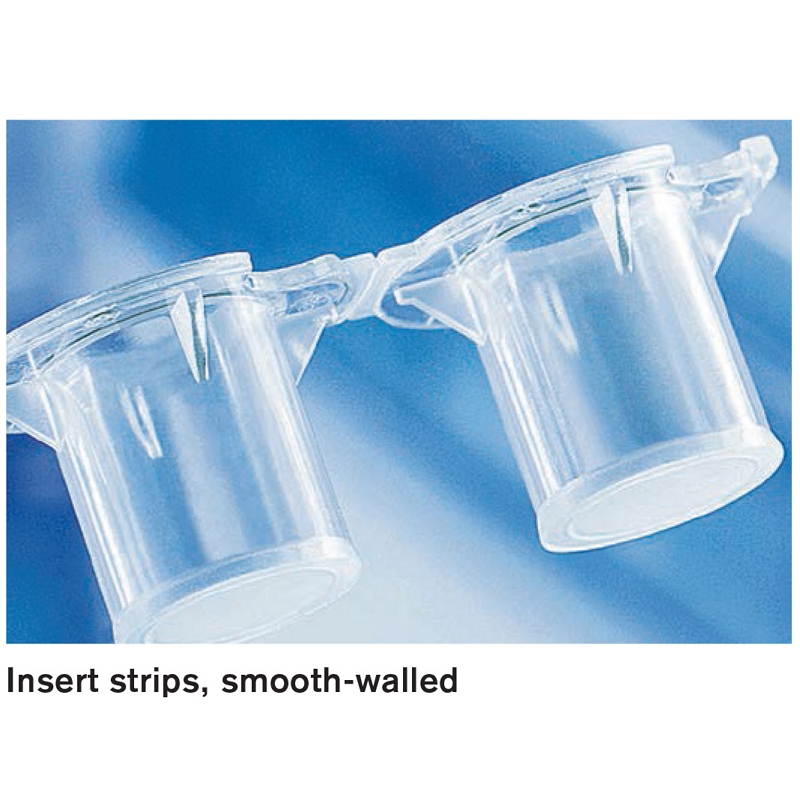

P04-59-771 | 782800 | Smooth-walled | PC | 0.4 um |
P04-59-772 | 782820 | 1 um |
P04-59-773 | 782840 | 3 um |
P04-59-774 | 782860 | 8 um |
P04-59-775 | 782810 | PET | 0.4 um |
P04-59-776 | 782870 | 8 um |
P04-59-777 | 782801 | with Inlet Opeing System | PC | 0.4 um |
P04-59-778 | 782821 | 1 um |
P04-59-779 | 782841 | 3 um |
P04-59-780 | 782861 | 8 um |
P04-59-781 | 782811 | PET | 0.4 um |
P04-59-782 | 782871 | 8 um |
* Hanging Insert : 4mm Distance ( from Well Bottom to Insert Membrane )

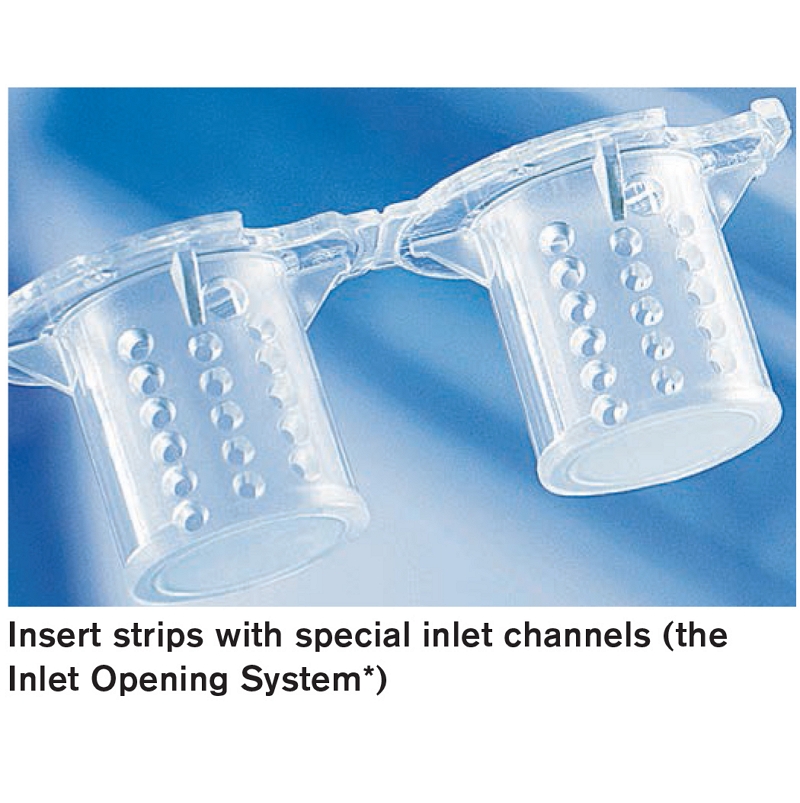

* Inlet Opening System : Automated in Vitro Preparation of Human Tissues
- Rapid, Consistent Changing of Media, from Submersion Culture to Air-lift Culture
- Adjustment of Medium Level without Damage to Skin Model
* 그 외 규격은 가격문의 부탁드립니다.
