| 1.
Multi-Walled Carbon Nanotubes |
| 모델번호 | 상품명 | Specifications | 포장단위 | 비고 |
| M1 | Multi-Wall | Color
: Black | 50g | PH
: 7~8 Cu <1 ppm |
| ParticleSize : 20-30nm | H2O : 0.5% Fe
<1 ppm |
| Length : 1-2um | Mo <0.5%
Mg <1 ppm |
| Content : ≥99% | Ni <0.1% |
| | |
| M2 | Multi-Wall | Color
: Black | 50g | PH
: 7~8 Cu <1 ppm |
| Particle Size : 20-30nm | H2O : 0.5% Fe
<1 ppm |
| Length : 5-15um | Mo <0.5%
Mg <1 ppm |
| Content : ≥99% | Ni <0.1% |
| | |
| M3 | Multi-Wall | Color
: Black | 50g | PH
: 7~8 Cu <1 ppm |
| Particle Size : 40-60nm | H2O : 0.5% Fe
<1 ppm |
| Length : 1-2um | Mo <0.5%
Mg <1 ppm |
| Content : ≥99% | Ni <0.1% |
| | |
| M4 | Multi-Wall | Color
: Black | 50g | PH
: 7~8 Cu <1 ppm |
| Particle Size : 40-60nm | H2O : 0.5% Fe
<1 ppm |
| Length : 5-15um | Mo <0.5%
Mg <1 ppm |
| Content : ≥99% | Ni <0.1% |
| | |

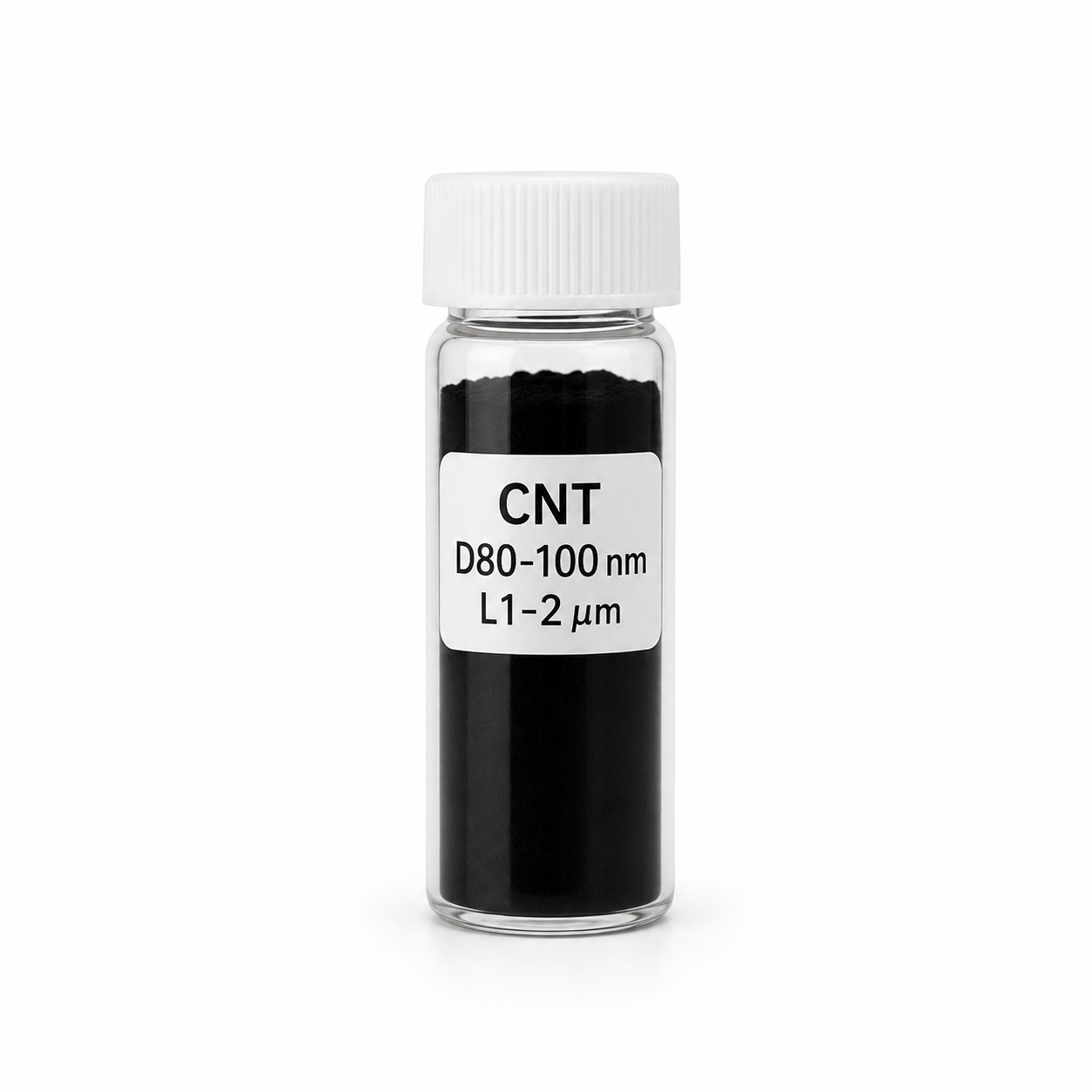

| M5 | Multi-Wall | Color
: Black | 50g | PH
: 7~8 Cu <1 ppm |
| Particle Size : 80-100nm | H2O : 0.5% Fe
<1 ppm |
| Length : 1-2um | Mo <0.5%
Mg <1 ppm |
| Content : ≥91% | Ni <0.1% |
| | |
| M6 | Multi-Wall | Color
: Black | 50g | PH
: 7~8 Cu <1 ppm |
| Particle Size : 80-100nm | H2O : 0.5% Fe
<1 ppm |
| Length : 5-15um | Mo <0.5%
Mg <1 ppm |
| Content : ≥91% | Ni <0.1% |
| | |
| KNMM70 | Short- Multi-walled Carbon Nanotubes | OD：4-6nm | 5g | |
| Length：0.5-2 μm |
| Purity：>98% |
| |
| KNMM71 | Hydroxylate Short- Multi-walled Carbon Nanotubes | OD：4-6nm | 5g | |
| Length：0.5-2 μm |
| Purity：>98% |
| |
| KNMM72 | Carboxylic Short- Multi-walled Carbon
Nanotubes | OD：4-6nm | 5g | |
| Length：0.5-2 μm |
| Purity：>98% |
| |
| KNMM67 | Long Multi-walled Carbon Nanotubes | OD：4-6nm | 10g | |
| Length：10-20 μm |
| Purity：>98% |
| |
| KNMM68 | Hydroxylate Long Multi-walled Carbon
Nanotubes | OD：4-6nm | 10g | |
| Length：10-20 μm |
| Purity：>98% |
| |
| KNMM69 | Carboxylic Long Multi-walled Carbon
Nanotubes | OD：4-6nm | 10g | |
| Length：10-20 μm |
| Purity：>98% |
| |
| KNMM01 | Multi-walled Carbon Nanotubes | OD:
5-15 nm | 1g | |
| Length: 10-30 μm |
| Purity: >95% |
| |
| KNMM02 | Hydroxylate Multi-walled Carbon Nanotubes | OD:
5-15 nm | 1g | |
| Length: 10-30 μm |
| Purity: >95% |
| |
| KNMM03 | Carboxylic Multi-walled Carbon Nanotubes | OD:
5-15 nm | 1g | |
| Length: 10-30 μm |
| Purity: >95% |
| |
| KNMM04 | Short- Multi-walled Carbon Nanotubes | OD:
5-15 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM05 | Short-Hydroxylate Multi-walled Carbon Nanotubes | OD:
5-15 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM06 | Short-Carboxylic Multi-walled Carbon Nanotubes | OD:
5-15 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM07 | Multi-walled Carbon Nanotubes | OD:
8-15 nm, | 1g | |
| Length: ~50 μm |
| Purity: >95% |
| |
| KNMM08 | Hydroxylate Multi-walled Carbon Nanotubes | OD:
8-15 nm | 1g | |
| Length: ~50 μm |
| Purity: >95% |
| |
| KNMM09 | Carboxylic Multi-walled Carbon Nanotubes | OD:
8-15 nm | 1g | |
| Length: ~50 μm |
| Purity: >95% |
| |
| KNMM10 | Short- Multi-walled Carbon Nanotubes | OD:
8-15 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM11 | Short-Hydroxylate Multi-walled Carbon Nanotubes | OD:
8-15 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM12 | Short-Carboxylic Multi-walled Carbon Nanotubes | OD:
8-15 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM13 | Multi-walled Carbon Nanotubes | OD:
10-20 nm | 1g | |
| Length: 10-30 μm |
| Purity: >95% |
| |
| KNMM14 | Hydroxylate Multi-walled Carbon Nanotubes | OD:
10-20 nm | 1g | |
| Length: 10-30 μm |
| Purity: >95% |
| |
| KNMM15 | Carboxylic Multi-walled Carbon Nanotubes | OD:
10-20 nm | 1g | |
| Length: 10-30 μm |
| Purity: >95% |
| |
| KNMM16 | Short- Multi-walled Carbon Nanotubes | OD:
10-20 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM17 | Short-Hydroxylate Multi-walled Carbon Nanotubes | OD:
10-20 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM18 | Short-Carboxylic Multi-walled Carbon Nanotubes | OD:
10-20 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM19 | Multi-walled Carbon Nanotubes | OD:
20-30 nm | 1g | |
| Length: 10-30 μm |
| Purity: >95% |
| |
| KNMM20 | Hydroxylate Multi-walled Carbon Nanotubes | OD:
20-30 nm | 1g | |
| Length: 10-30 μm |
| Purity: >95% |
| |
| KNMM21 | Carboxylic Multi-walled Carbon Nanotubes | OD:
20-30 nm | 1g | |
| Length: 10-30 μm |
| Purity: >95% |
| |
| KNMM22 | Short- Multi-walled Carbon Nanotubes | OD:
20-30 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM23 | Short-Hydroxylate Multi-walled Carbon Nanotubes | OD:
20-30 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM24 | Short-Carboxylic Multi-walled Carbon Nanotubes | OD:
20-30 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM25 | Multi-walled Carbon Nanotubes | OD:
30-50 nm | 1g | |
| Length: ＜10 μm |
| Purity: >95% |
| |
| KNMM26 | Hydroxylate Multi-walled Carbon Nanotubes | OD:
30-50 nm | 1g | |
| Length: ＜10 μm |
| Purity: >95% |
| |
| KNMM27 | Carboxylic Multi-walled Carbon Nanotubes | OD:
30-50 nm | 1g | |
| Length: ＜10 μm |
| Purity: >95% |
| |
| KNMM28 | Short- Multi-walled Carbon Nanotubes | OD:
30-50 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM29 | Short-Hydroxylate Multi-walled Carbon Nanotubes | OD:
30-50 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM30 | Short-Carboxylic Multi-walled Carbon Nanotubes | OD:
30-50 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM31 | Multi-walled Carbon Nanotubes | OD:
>50 nm | 1g | |
| Length: ＜10 μm |
| Purity: >95% |
| |
| KNMM32 | Hydroxylate Multi-walled Carbon Nanotubes | OD:
>50 nm | 1g | |
| Length: ＜10 μm |
| Purity: >95% |
| |
| KNMM33 | Carboxylic Multi-walled Carbon Nanotubes | OD:
>50 nm | 1g | |
| Length: ＜10 μm |
| Purity: >95% |
| |
| KNMM34 | Short- Multi-walled Carbon Nanotubes | OD:
>50 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM35 | Short-Hydroxylate Multi-walled Carbon Nanotubes | OD:
>50 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM36 | Short-Carboxylic Multi-walled Carbon Nanotubes | OD:
>50 nm | 1g | |
| Length: 0.5-2 μm |
| Purity: >95% |
| |
| KNMM37 | Graphitized Multi-walled Carbon Nanotubes | OD:
8-15 nm | 1g | |
| Length: 10-50 μm |
| Purity: >99.9% |
| |
| KNMM38 | Graphitized Hydroxylate Multi-walled Carbon
Nanotubes | OD:
8-15 nm | 1g | |
| Length: 10-50 μm |
| Purity: >99.9% -OH:1.85wt% |
| |
| KNMM39 | Graphitized Carboxyl Multi-walled Carbon
Nanotubes | OD:
8-15 nm | 1g | |
| Length: 10-50 μm |
| Purity: >99.9% -COOH:1.28wt% |
| |
| KNMM40 | Graphitized Multi-walled Carbon Nanotubes | OD:
10-20 nm | 1g | |
| Length: 5-30 μm |
| Purity: >99.9% |
| |
| KNMM41 | Graphitized Hydroxylate Multi-walled Carbon
Nanotubes | OD:
10-20 nm | 1g | |
| Length: 5-30 μm |
| Purity: >99.9% -OH:1.53wt% |
| |
| KNMM42 | Graphitized Carboxyl Multi-walled Carbon
Nanotubes | OD:
10-20 nm | 1g | |
| Length: 5-30 μm |
| Purity: >99.9% -COOH:1.00wt% |
| |
| KNMM43 | Graphitized Multi-walled Carbon Nanotubes | OD:
20-30 nm | 1g | |
| Length: 5-30 μm |
| Purity: >99.9% |
| |
| KNMM44 | Graphitized Hydroxylate Multi-walled Carbon
Nanotubes | OD:
20-30 nm | 1g | |
| Length: 5-30 μm |
| Purity: >99.9% -OH:0.88wt% |
| |
| KNMM45 | Graphitized Carboxyl Multi-walled Carbon
Nanotubes | OD:
20-30 nm | 1g | |
| Length: 5-30 μm |
| Purity: >99.9% -COOH:0.61wt% |
| |
| KNMM46 | Graphitized Multi-walled Carbon Nanotubes | OD:
30-50 nm | 1g | |
| Length: ＜10 μm |
| Purity: >99.9% |
| |
| KNMM47 | Graphitized Hydroxylate Multi-walled Carbon
Nanotubes | OD:
30-50 nm | 1g | |
| Length: ＜10 μm |
| Purity: >99.9% -OH:0.53wt% |
| |
| KNMM48 | Graphitized Carboxyl Multi-walled Carbon
Nanotubes | OD:
30-50 nm | 1g | |
| Length: ＜10 μm |
| Purity: >99.9% -COOH:0.36wt% |
| |
| KNMM49 | Graphitized Multi-walled Carbon Nanotubes | OD:
>50 nm | 1g | |
| Length: ＜10 μm |
| Purity: >99.9% |
| |
| KNMM50 | Graphitized Hydroxylate Multi-walled Carbon
Nanotubes | OD:
>50 nm | 1g | |
| Length: ＜10 μm |
| Purity: >99.9% -OH:0.36wt% |
| |
| KNMM51 | Graphitized Carboxyl Multi-walled Carbon
Nanotubes | OD:
>50 nm | 1g | |
| Length: ＜10 μm |
| Purity: >99.9% -COOH:0.25wt% |
| |
| KNMM52 | Ni Coated Multi-walled carbon nanotubes | OD:
8-15 nm | 1g | |
| Length: ~50 μm |
| Ni Content: >60% CNTs >38% |
| |
| KNMM53 | Ni Coated Multi-walled carbon nanotubes | OD:
10-20 nm | 1g | |
| Length: 10-30 μm |
| Ni Content: >60% CNTs >38% |
| |
| KNMM54 | Ni Coated Multi-walled carbon nanotubes | OD:
20-30 nm | 1g | |
| Length: 10-30 μm |
| Ni Content: >60% CNTs >38% |
| |
| KNMM55 | Ni Coated Multi-walled carbon nanotubes | OD:
30-50 nm | 1g | |
| Length: ＜10 μm |
| Ni Content: >60% CNTs >38% |
| |
| KNMM56 | Ni Coated Multi-walled carbon nanotubes | OD:
>50 nm | 1g | |
| Length: ＜10 μm |
| Ni Content: >60% CNTs >38% |
| |
| KNMM57 | Flash-ignited Carbon Nanotubes | OD:
2-50 nm | 1g | |
| Length: ~50 μm |
| CNTs >50% |
| |
| KNMM58 | Flash-ignited Carbon Nanotubes | OD:
30-60 nm | 1g | |
| Length: 1-10 μm |
| Purity: >70% |
| |
| KNMM59 | Helical Multi-walled carbon nanotubes | OD:
100-200 nm | 1g | |
| Length: 1-10 μm |
| Purity: >60% |
| |
| KNMM60 | Carbon nano fibers | OD:
50-200 nm | 1g | |
| Length: 1-15 μm |
| Purity: >95% |
| |
| KNMM61 | Aligned Multi-walled carbon nanotubes | OD:
10-20 nm | 1g | |
| Length:30-100μm |
| Purity: >95% |
| |
| KNMM62 | Amino modified MWCNT | OD:
8-15 nm | 1g | |
| Length:50 μm |
| Purity: >95% |
| |
| KNMM63 | Nitrogen-doped MWCNTs | OD:
30-80 nm | 1g | |
| Length:10-30 μm |
| Purity: >95% N Content:＞ 2.50 wt% |
| |
| KNMM64 | Nitrogen-doped MWCNTs | OD:
30-50 nm | 1g | |
| Length:0.5-2 μm |
| Purity: >95% N Content: ＞2.5wt% |
| |
| KNMM65 | Fluorinated Carbon Nanotubes | Diameter:20-30
nm | 20g | |
| Length:2-10 μm |
| F wt.%: 48-50% |
| |
| KNMM66 | Fluorinated Carbon Nanotubes | Diameter:20-30
nm | 20g | |
| Length:2-10 μm |
| F wt.%: 48-58% |
| |
| | | | | |

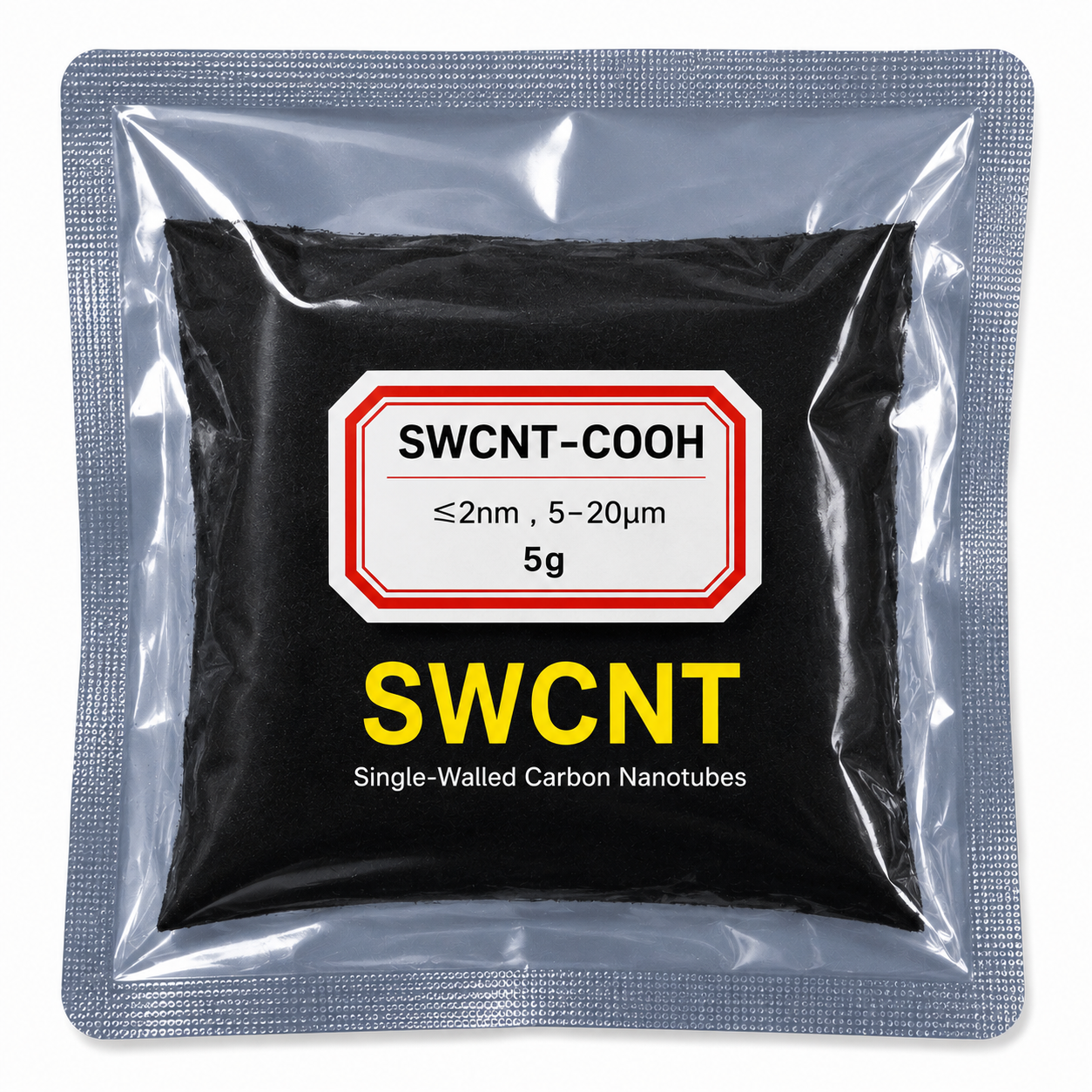

| 2. Single Walled Carbon
Nanotubes |
| 모델번호 | 상품명 | Specifications | 포장단위 | 비고 |
| KNMS01 | High Purified Single-walled carbon nanotubes | OD:
<2 nm | 500mg | |
| Length: 5-30 μm |
| Purity: >95% |
| |
| KNMS16 | High Purified Single-walled carbon nanotubes | OD:
1-2nm | 1g | Floating, Catalyst Method, High
Purity |
| Length: 5-30 μm |
| Purity: >95% |
| |
| KNMS17 | High Purified Hydroxylate Single-walled carbon
nanotubes | OD:
1-2nm | 1g | Floating, Catalyst Method, High
Purity |
| Length: 5-30 μm |
| Purity: >95% |
| |
| KNMS18 | High Purified Carboxylic Single-walled carbon
nanotubes | OD:
1-2nm | 1g | Floating, Catalyst Method, High
Purity |
| Length: 5-30 μm |
| Purity: >95% |
| |
| KNMS14 | High Purified Amio Single-walled carbon
nanotubes | OD:
1-2nm | 500mg | |
| Length: 5-30 μm |
| Purity: >95% |
| |
| KNMS19 | High Purified Single-walled carbon nanotubes | OD:
1-2nm | 1g | Floating, Catalyst Method, High
Purity |
| Length: 1-3 μm |
| Purity: >95% |
| |
| KNMS20 | High Purified Hydroxylate Single-walled carbon
nanotubes | OD:
1-2nm | 1g | Floating, Catalyst Method, High
Purity |
| Length: 1-3 μm |
| Purity: >95% |
| |
| KNMS21 | High Purified Carboxylic Single-walled carbon
nanotubes | OD:
1-2nm | 1g | Floating, Catalyst Method, High
Purity |
| Length: 1-3 μm |
| Purity: >95% |
| |
| KNMS15 | Purified Amio Single-walled carbon nanotubes | OD:
1-2nm | 500mg | |
| Length: 1-3 μm |
| Purity: >95% |
| |
| KNMS22 | High Purified Large Surface Area Single-walled
Carbon | OD:
1-2nm | 1g | |
| Length: 5-30 μm |
| SSA: >1075m2/g |
| |
| KNMS02 | Purified Single-walled carbon nanotubes | OD:
1-2nm | 1g | |
| Length: 5-30 μm |
| Purity: >90% |
| |
| KNMS03 | Purified Hydroxylate Single-walled carbon
nanotubes | OD:
1-2nm | 1g | |
| Length: 5-30 μm |
| Purity: >90% |
| |
| KNMS04 | Purified Carboxylic Single-walled carbon
nanotubes | OD:
1-2nm | 1g | |
| Length: 5-30 μm |
| Purity: >90% |
| |
| KNMS05 | Short Purified Single-walled carbon nanotubes | OD:
1-2nm | 1g | |
| Length: 1-3 μm |
| Purity: >90% |
| |
| KNMS06 | Short Purified Hydroxylate Single-walled carbon
nanotubes | OD:
1-2nm | 1g | |
| Length: 1-3 μm |
| Purity: >90% |
| |
| KNMS07 | Short Purified Carboxylic Single-walled carbon
nanotubes | OD:
1-2nm | 1g | |
| Length: 1-3 μm |
| Purity: >90% |
| |
| KNMS08 | Industrial Single-walled Carbon Nanotubes | OD:
1-2 nm | 1g | |
| Length: 5-30 μm |
| Purity:>60% |
| |
| KNMS09 | Industrial Single-walled Carbon Nanotubes | OD:
1-2 nm | 1g | |
| Length: 5-30 μm |
| Purity:>60% |
| |
| KNMS10 | Industrial Single-walled Carbon Nanotubes | OD:
1-2 nm | 1g | |
| Length: 5-30 μm |
| Purity:>60% |
| |
| KNMS11 | Industrial Single-walled Carbon Nanotubes | OD:
1-2nm | 1g | |
| Length: 1-3 μm |
| Purity: >60% |
| |
| KNMS12 | Industrial Single-walled Carbon Nanotubes | OD:
1-2nm | 1g | |
| Length: 1-3 μm |
| Purity: >60% |
| |
| KNMS13 | Industrial Single-walled Carbon Nanotubes | OD:
1-2nm | 1g | |
| Length: 1-3 μm |
| Purity: >60% |
| |
| KNMS23 | Organic soluble Single-walled Carbon Nanotubes
(functionalized with ODA) | Carbon Purity>90% SWCNTs Content:65% ± 15%
ODA Content:35% ± 15% | 100mg | |
| KNMS24 | Water soluble Single-walled Carbon Nanotubes
(functionalized with PEG) | Carbon Purity> 90% SWCNTs Content:80% ± 10%
PEG Content:20% ± 10% | 100mg | |
| KNMS25 | Water soluble Single-walled Carbon Nanotubes
(functionalized with PABS) | Carbon Purity> 90% SWCNTs
Content:35% ± 10% Metal Content:1-3 wt% | 100mg | |
| | | | | |
| 3. Double Walled Carbon
Nanotubes |
| 모델번호 | 상품명 | Specifications | 포장단위 | 비고 |
| KNMD01 | Double walled carbon nanotubes | OD:
2-4nm | 1g | |
| Length: ~50 μm |
| Purity: >60% |
| |
| KNMD02 | Hydroxylate Double walled carbon nanotubes | OD:
2-4nm | 1g | |
| Length: ~50 μm |
| Purity: >60% |
| |
| KNMD03 | Carboxylic Double walled carbon nanotubes | OD:
2-4nm | 1g | |
| Length: ~50 μm |
| Purity: >60% |
| |
| KNMD04 | Short-Double walled carbon nanotubes | OD:
2-4nm | 1g | |
| Length:0.5-2 μm |
| Purity: >60% |
| |
| KNMD05 | Short-Hydroxylate Double walled carbon nanotubes | OD:
2-4nm | 1g | |
| Length:0.5-2 μm |
| Purity: >60% |
| |
| KNMD06 | Short-Carboxylic Double walled carbon nanotubes | OD:
2-4nm | 1g | |
| Length:0.5-2 μm |
| Purity: >60% |
| |
| | | | | |
| 4. Carbon Nanotubes Dispersion |
| 모델번호 | 상품명 | Specifications | 포장단위 | 비고 |
| KNMNDSR | Ultrapure carbon nanotubes dispersion in NMP | SWCNTs
| 100g | |
| content:0.20wt% Out |
| Diameter:1-2 nm |
| Length:5-30 μm |
| Purity:>95% |
| |
| KNMWDSRC | Carboxylated Ultrapure Single-walled carbon
nanotubes dispersion in water | SWCNTs | 100g | |
| content:0.15wt% Out |
| Diameter:1-2 nm |
| Length:5-30 μm |
| Purity:>95% |
| |
| KNMWDSR | Ultrapure Single-walled carbon nanotubes
dispersion in water | SWCNTs | 100g | |
| content:0.15wt% Out |
| Diameter:1-2 nm |
| Length:5-30 μm |
| Purity:>95% |
| |
| KNMWPM-H-M31 | High concentration MWCNTs water
dispersion(~14wt%) | Prepared
using KNM M31 | 500g | |
| carbon nanotubes content ：~14wt% |
| |
| KNMWPMC-H-M33 | High concentration carboxyl MWCNTs water
dispersion | Prepared
using KNMM33 | 500g | |
| carbon nanotubes content ：~13wt% |
| |
| KNMWPMC -M33 | Carboxyl MWCNTs water dispersion | Prepared
using KNMM33 | 500g | |
| carbon nanotubes content ：~10wt% |
| |
| KNMWPMC-M09 | Carboxyl MWCNTs water dispersion (~2.7wt%) | carbon
nanotubes content：~2.7wt% | 500g | |
| CNT type ：KNMM09 |
| |
| KNMWPM -M07 | MWCNTs water dispersion (~2.8wt%) | carbon
nanotubes content：~2.8wt% | 500g | |
| CNT type：KNMM07 |
| |
| KNMWDM | Multi-walled carbon nanotubes dispersion in
water | Prepared
using KNMM31 carbon nanotubes content : 7-10 %wt. | 500mL | Used
for composite materials, |
| （The actual solid content shall prevail） | battery
materials |
| | |
| KNMDZM | Customized multi - walled carbon nanotube
dispersion | Carbon nanotube content, Solvent etc. | 10mL | Mail consultation |
| KNMZ29 | carbon nanotubes dispersion in water | Prepared
using KNMM31 | Kg | |
| carbon nanotubes content 9-10wt % |
| |
| KNMEPO-1 | Single-walled carbon nanotubes epoxy compound | Composition：CNTs/dispersant/epoxy resin | 500g | |
| KNMEPO-2 | Small tube diameter multi-wall carbon nanotubes
epoxy compound | Composition：CNTs/dispersant/epoxy resin
CNTs：KNMM07 | 500g | |
| KNMEPO-3 | Large diameter multi-wall carbon nanotubes epoxy
compound | Composition：CNTs/dispersant/epoxy resin
CNTs：KNMM31 | 500g | |
| KNMEC01 | Carbon nanotubes conductive water-based coating | Color：Black Solid content:15-25% | 500g | |
| KNMTC01 | Transparent conducting electrostatic carbon
nanotube coating | Solid content:5-15% | 500g | |
| | | | | |
| 5. Metallic and Semiconducting
Single Wall Carbon Nanotube |
| 모델번호 | 상품명 | Specifications | 포장단위 | 비고 |
| KNMN15 | High Purity Single Wall Nanotubes | Diameter:0.7-2.5
nm | 1g | |
| Length:0.5-10 μm |
| Purity:>90wt% |
| |
| KNMN16 | Singlewall Nanotubes, -OH Hydroxy | Diameter:0.7-2.5
nm | 1g | |
| Length:0.5-5 μm |
| Purity:>95wt% |
| |
| KNMN17 | Multiwall Nanotubes | Diameter:5-15
nm | 10g | |
| Length:1-10 μm |
| Purity:>95wt% |
| |
| KNMN18 | Multiwall Nanotubes -OH Hydroxy | Diameter:5-15
nm | 10g | |
| Length:1-5 μm |
| Purity:>98wt% |
| |
| KNMN01 | SuperPureTubes 99% Ultra-Pure SWNTs | OD:
1.2 nm-1.7 nm | 25mg | Arc method |
| Length: 300 nm-4 μm |
| Purity: >99% Solution Color:Gray |
| |
| KNMN02 | PureTubes | OD:
1.2 nm-1.7 nm | 25mg | Arc method |
| Length: 300 nm-4 μm |
| Purity: >96% Solution Color:Gray |
| |
| KNMN03 | HiPCO-R HiPCO SWNTs ?Raw | Residual
Fe Catalyst<35wt% Diameter:0.8-1.2 nm | 500mg | Arc method |
| Length:100-1000 nm |
| |
| KNMN04 | HiPCO-P HiPCO SWNTs -Purified | Residual
Fe Catalyst<15wt% Diameter:0.8-1.2 nm | 500mg | |
| Length:100-1000 nm |
| |
| KNMN05 | HiPCO-SP HiPCO SWNTs -Super Purified | Residual
Fe Catalyst<5wt% | 500mg | |
| Diameter:0.8-1.2 nm |
| Length:100-1000 nm |
| |
| KNMN27-1 | HiPCO Semiconducting HiPCO SWNTs Aqueous | Residual
Fe Catalyst<5wt% | 1mg | liquid |
| Diameter:0.7-1.0 nm |
| Length:100-1000 nm |
| |
| KNMN27-2 | HiPCO Semiconducting HiPCO SWNTs solid | Residual
Fe Catalyst<5wt% | 1mg | Solid |
| Diameter:0.7-1.0 nm |
| Length:100-1000 nm |
| |
| KNMN28-1 | HiPco
pure Metallic | Residual
Fe Catalyst<5wt% | 1mg | liquid |
| HiPCO SWNTs Aqueous | Diameter:0.7-1.0
nm |
| | Length:100-1000
nm |
| | |
| KNMN28-2 | HiPco
pure Metallic | Residual
Fe Catalyst<5wt% | 1mg | Solid |
| HiPCO SWNTs solid | Diameter:0.7-1.0
nm |
| | Length:100-1000
nm |
| | |
| KNMN06 | IsoNanotubes-S
90% | Diameter:1.2-1.7nm | 1mg | Liquid dispersions are provided, with an
additional charge of 1000 yuan on the basis of Solid |
| Pure Semiconducting SWNT | Length:300 nm
to 5μm |
| | Solution Color:
Pink |
| | Metal Catlyst
Impurity : <1% |
| | Amorphous
Carbon Impurity: 1-5% |
| | |
| KNMN07 | IsoNanotubes-S
95% | Diameter:1.2-1.7nm | 1mg | Liquid dispersions are provided, with an
additional charge of 1000 yuan on the basis of Solid |
| Pure Semiconducting SWNT | Length:300 nm
to 5μm |
| | Solution Color:
Pink |
| | Metal Catlyst
Impurity : <1% |
| | Amorphous
Carbon Impurity: 1-5% |
| | |
| KNMN08 | IsoNanotubes-S
98% | Diameter:1.2-1.7nm | 1mg | Liquid dispersions are provided, with an
additional charge of 1000 yuan on the basis of Solid |
| Pure Semiconducting SWNT | Length:300 nm
to 5μm |
| | Solution Color:
Pink |
| | Metal Catlyst
Impurity : <1% |
| | Amorphous
Carbon Impurity: 1-5% |
| | |
| KNMN09 | IsoNanotubes-S
99% | Diameter:1.2-1.7nm | 1mg | Liquid dispersions are provided, with an
additional charge of 1000 yuan on the basis of Solid |
| Pure Semiconducting SWNT | Length:300 nm
to 5μm |
| | Solution Color:
Pink |
| | Metal Catlyst
Impurity : <1% |
| | Amorphous
Carbon Impurity: 1-5% |
| | |
| KNMN19 | IsoSol-S100
99.9% | Diameter:1.2-1.4nm | 1mg | Liquid dispersions are provided, with an
additional charge of 1000 yuan on the basis of Solid |
| Pure Semiconducting SWNT | Length: 1 ?m |
| | Solution Color:
Pink |
| | Metal Catlyst
Impurity : <0.5% |
| | Amorphous
Carbon Impurity: <1% |
| | Solvent:
Toluene |
| | |
| KNMN31-1 | IsoNanotubes-S 99.9%Pure Semiconducting SWNT | Diameter:1.2nm-1.7nm | 1mg | |
| Length:300nm-5μm |
| Metal Catlyst Impurity:<1% |
| Amorphous Carbon Impurity:1-5% |
| |
| KNMN10 | IsoNanotubes-M 70% pure Metallic SWNTs | Diameter:1.2-1.7nm
| 1mg | Liquid dispersions are provided, with an
additional charge of 1000 yuan on the basis of Solid |
| Length:300 nm to 5μm |
| Solution Color:Green |
| Metal Catlyst Impurity : <1% |
| Amorphous Carbon Impurity: 1-5% |
| |
| KNMN11 | IsoNanotubes-M 90% pure Metallic SWNTs | Diameter:1.2-1.7nm
| 1mg | Liquid dispersions are provided, with an
additional charge of 1000 yuan on the basis of Solid |
| Length:300 nm to 5μm
|
| Solution Color:Green |
| Metal Catlyst Impurity : <1% |
| Amorphous Carbon Impurity: 1-5% |
| |
| KNMN12 | IsoNanotubes-M 95% pure Metallic SWNTs | Diameter:1.2-1.7nm
| 1mg | Liquid dispersions are provided, with an
additional charge of 1000 yuan on the basis of Solid |
| Length:300 nm to 5μm
|
| Solution Color:Green |
| Metal Catlyst Impurity : <1% |
| Amorphous Carbon Impurity: 1-5% |
| |
| KNMN13 | IsoNanotubes-M 98% pure Metallic SWNTs | Diameter:1.2-1.7nm | 1mg | Liquid dispersions are provided, with an
additional charge of 1000 yuan on the basis of Solid |
| Length:300 nm to 5μm |
| Solution Color:Green |
| Metal Catlyst Impurity : <1% |
| Amorphous Carbon Impurity: 1-5% |
| |
| KNMN14 | IsoNanotubes-M 99% pure Metallic SWNTs | Diameter:1.2-1.7nm | 1mg | Liquid dispersions are provided, with an
additional charge of 1000 yuan on the basis of Solid |
| Length:300 nm to 5μm |
| Solution Color:Green |
| Metal Catlyst Impurity : <1% |
| Amorphous Carbon Impurity: 1-5% |
| |
| KNMN20 | Super Purified Plasma Nanotubes Solution SPT-220 | Diameter:0.9-1.7nm | 100mg | |
| Length:300 nm to 4μm |
| Solution Color: Dark Brown |
| Metal Catlyst Impurity : <3% |
| Amorphous Carbon Impurity: <2% |
| |
| KNM21 | Super Purified Plasma Nanotubes Powder SPT-220 | Diameter:0.9-1.7nm | 100mg | |
| Length:300 nm to 4μm |
| Metal Catlyst Impurity : <3% |
| Amorphous Carbon Impurity: <2% |
| |
| KNMN22 | Purified Plasma Nanotubes Solution RN-220 | Diameter:0.9-1.7nm | 1g | |
| Length:500 nm to 4μm |
| Solution Color: Dark Brown |
| C-SWNT Content:60-70% |
| |
| KNMN23 | Purified Plasma Nanotubes Powder RN-220 | Diameter:0.9-1.7nm | 1g | |
| Length:500 nm to 4μm |
| C-SWNT Content:60-70% |
| |
| KNMN24 | Raw Plasma Nanotubes Solution RN-020 | Diameter:0.9-1.7nm | 1g | |
| Length:500 nm to 4 μm |
| Solution Color: Dark Brown |
| C-SWNT Content:30-40% |
| |
| KNMN25 | Raw Plasma Nanotubes Powder RN-020 | Diameter:0.9-1.7nm | 1g | |
| Length:500 nm to 4μm |
| C-SWNT Content:30-40% |
| |
| KNMN29 | Dielectic ink | Viscosity（25℃）: 8
- 9 cps | 10g | |
| Surface Tension:24 -25 mN/m |
| Solvent:Organic Solvent |
| |
| KNMN30 | IsoSol-S100 Pure Semiconducting SWNT+Dielectric
ink | Viscosity: 18-
22 cps | SET | |
| Surface Tension:25 -30 mN/m |
| |
| | | | | |
| 6. Oriented Carbon and Special
Carbon Nanotube Materials |
| 모델번호 | 상품명 | Specifications | 포장단위 | 비고 |
| KNMZ04 | Aligned arrays of MWCNTs | Square
Purity:98% | PC | 1cm*1cm 1.5 cm*1.5cm 2cm*2cm Height can be
customized |
| Density: ≤0.3g/cm3 |
| SSA: ~20 m2/g |
| Height:10-1000μm |
| Wall number:3-7 |
| Substrate: Polysilicon |
| |
| KNMZ08-1 | Carbon nanotube fibers | Length:1-1000 | m | |
| Diameter:100 μm |
| Density:0.5-0.7g/cm³ |
| Conductivity:1×105~ 2×105 S/m |
| |
| KNMZ27 | Aligned arrays of MWCNTs | Square
Purity:98% | PC | 1cm*1cm 1.5 cm*1.5cm 2cm*2cm Height can be
customized |
| Density: ≤0.3g/cm3 |
| SSA: ~20 m2/g |
| Wall number:3-7 |
| Height:10~100μm |
| Substrate: Quartz |
| |
| KNMZ12 | Multi-wall Carbon nanotube paper | Diameter: 13cm | PC | |
| Thickness:50-60μm |
| Metal content:<1.5% |
| Strength:10-15MPa Conductivity:(2-4)x103S/m |
| |
| KNMZ12-1 | Sing wall Carbon nanotube paper | Round,Diameter: 12-13cm | PC | Long lead time, please consult for ordering |
| Thickness:10-20μm |
| Metal content:< 0.5% |
| Strength:60-120MPa Conductivity:(1-2)x105S/m |
| |
| KNMZ13 | Carbon nanotube film | Thickness:5-15 μm | PC | 2cm*2cm 5cm*5cm 10cm*10cm 10cm*20cm Size
can be customized |
| Strength:80-120Mpa |
| Conductivity: |
| (1-10)104S/m Round or Square |
| |
| KNMZ14 | Conductive carbon nanotube film | Thickness:10 ~15 μm | PC | 5cm*5cm 10cm*10cm 30cm*30cm Size can be
customized |
| Strength:60-120Mpa Conductivity:3-8×104S/m |
| |
| KNMZ15 | Carbon nanotube metal composite film | Thickness:15-20 μm | PC | 5cm*5cm 10cm*10cm 30cm*30cm Size can be
customized |
| Strength:50-100Mpa Conductivity:>3×105S/m |
| Metallic Element:Cu,Ni |
| |
| KNMZ17 | Carbon nanotube metal composite tape | Thickness:15-20 μm | cm | Length Size can be customized. Shortest
length 10 cm |
| Strength:50-100Mpa Conductivity:>3×105S/m |
| Width:1 cm Cu, Ni is optional |
| |
| KNMZ20 | Dispersant for Carbon nanotubes aqueous
solutions | No APEO, especially suitable for carbon
nanotubes dispersed in water. | 1g | liquid |
| KNMZ21 | Dispersant for Carbon nanotubes alcohol solution | Suitable for carbon nanotubes in ethanol,
isopropyl alcohol, n-butanol, terpineol and other alcohol solvent dispersion. | 20g | powder |
| KNMZ22 | Dispersant for Carbon nanotubes DMF solution | Suitable for carbon nanotubes dispersed in N,
N-dimethylformamide. | 20g | powder |
| | | | | |
| 7. Carbon Nanotube Sponges |
| 모델번호 | 상품명 | Specifications | 포장단위 | 비고 |
| KNMCN01 | Carbon Nanotube Sponges | Length：1cm | 1개 | |
| Width： 1cm |
| Height：~0.4cm |
| |
| KNMCN02 | Carbon Nanotube Sponges | Length：2cm | 1개 | |
| Width： 2cm |
| Height：~0.4cm |
| |
| KNMCN03 | Carbon Nanotube Sponges | Length：5cm | 1개 | |
| Width： 2cm |
| Height：~0.4cm |
| |
| KNMCN04 | Carbon Nanotube Sponges | Length：5cm | 1개 | |
| Width： 1cm |
| Height：~0.4cm |
| |
| KNMCN05 | Carbon Nanotube Sponges | Length：5cm | 1개 | |
| Width： 5cm |
| Height：~0.4cm |
| |
| KNMCN06 | Carbon Nanotube Sponges | Length：10cm | 1개 | |
| Width： 5cm |
| Height：~0.4cm |
| |
| KNMCN07 | Carbon Nanotube Sponges | Volume:20cm3 | 1개 | |
| enblock greater than 0.1cm3 |
| |
