스테인레스 루어 어댑터
Luer Adapter, 316 Stainless Steel
![24df83e7e85460646d60fd6b81d3ff46_1634091506_1314.jpg](/uploaded/webedit/2110/24df83e7e85460646d60fd6b81d3ff46_1634091506_1314.jpg)
![24df83e7e85460646d60fd6b81d3ff46_1634090433_6256.jpg](/uploaded/webedit/2110/24df83e7e85460646d60fd6b81d3ff46_1634090433_6256.jpg)
![24df83e7e85460646d60fd6b81d3ff46_1634090434_0061.jpg](/uploaded/webedit/2110/24df83e7e85460646d60fd6b81d3ff46_1634090434_0061.jpg)
![24df83e7e85460646d60fd6b81d3ff46_1634090434_3143.jpg](/uploaded/webedit/2110/24df83e7e85460646d60fd6b81d3ff46_1634090434_3143.jpg)
■ 주요특징
■ 재질 : 316 Stainless Steel
■ FLL - Female Luer Lock - contains a tabbed hub for secure fitting to a threaded male luer lock.
■ MMFLL - Micro-Mate® Female Luer Lock - designed and manufactured to reduce the stripping
of threads which occurs when metal adapters are mated with plastic male luer lock adapters. Uniquely
designed to facilitate easy cleaning and maintenence.
■ MLL - Male Luer Lock - male luer slip with a threaded sheath for a secure fitting to a female luer lock.
■ ML - Male Luer - male luer slip that fits with a female luer.
■ Cadence Science

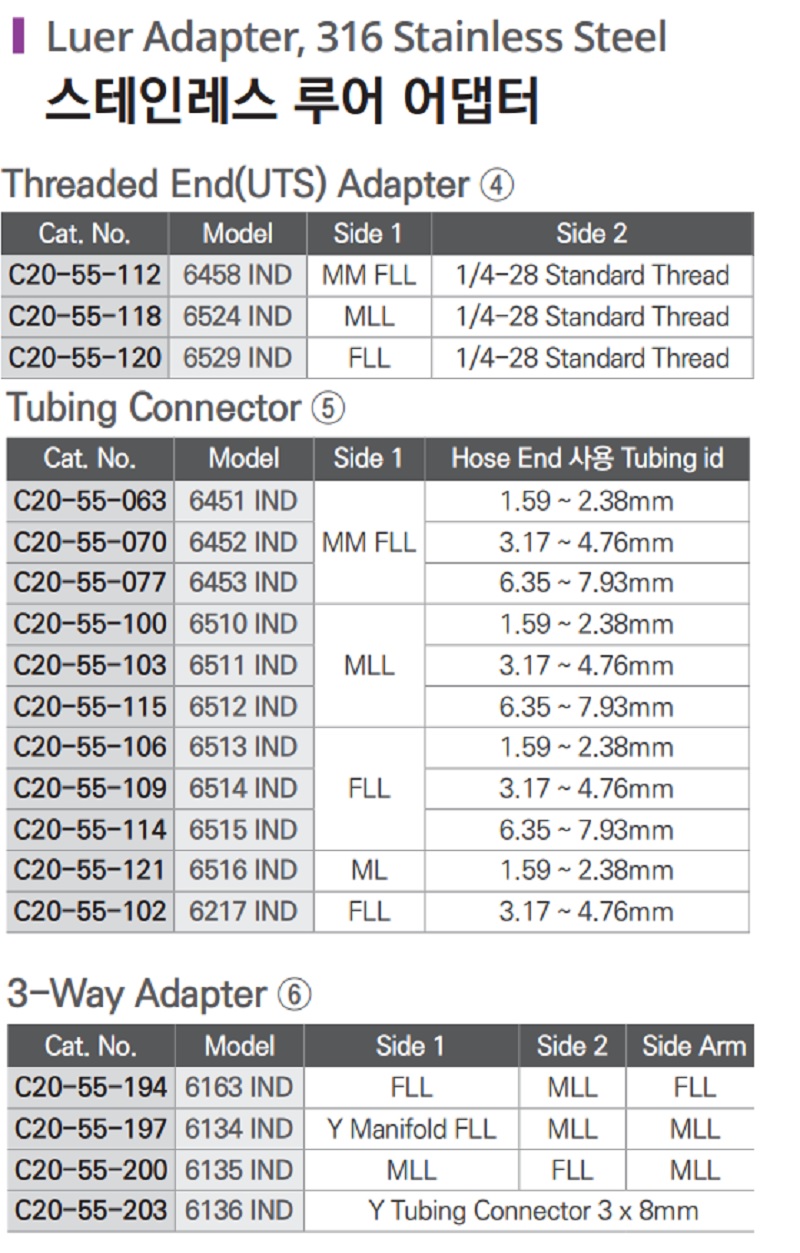

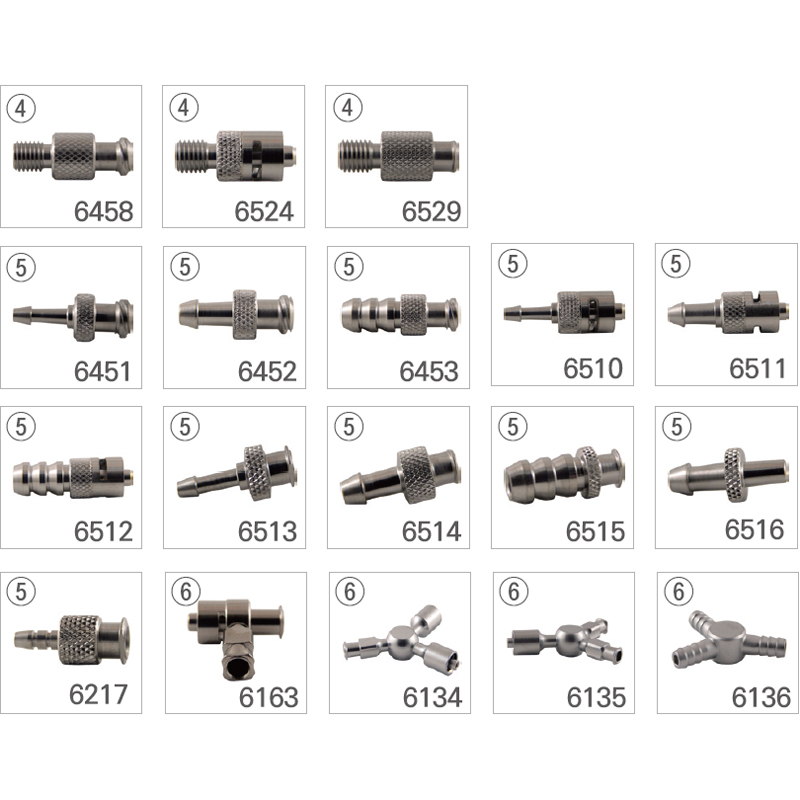

Threaded End(UTS) Adapter ④Cat. No | Model | Side 1 | Side 2 |
---|

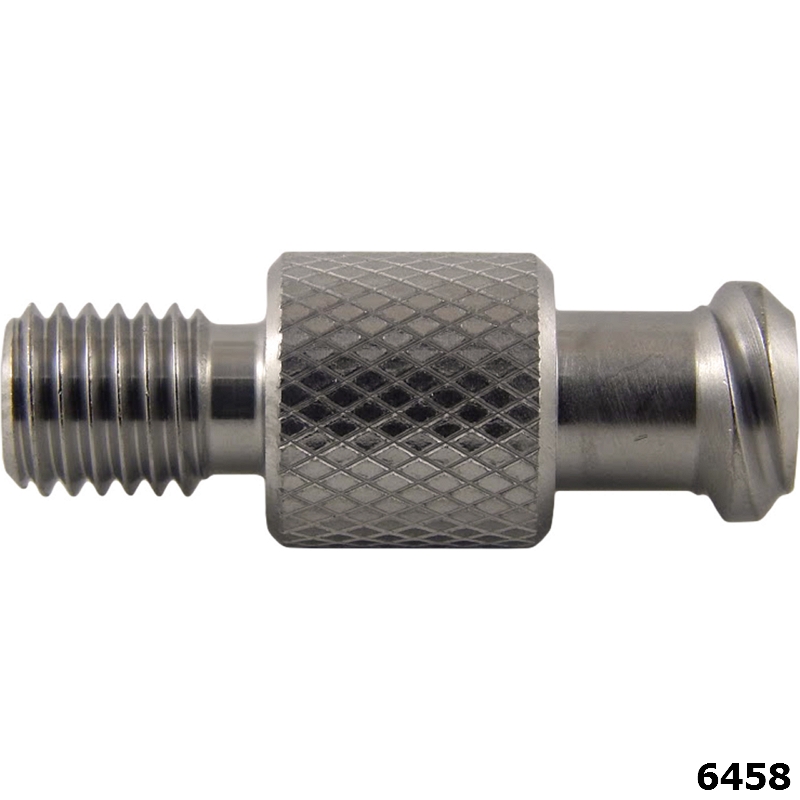

C20-55-112 | 6458 IND | MM FLL | 1/4-28 Standard Thread |
C20-55-118 | 6524 IND | MLL | 1/4-28 Standard Thread |
C20-55-120 | 6529 IND | FLL | 1/4-28 Standard Thread |

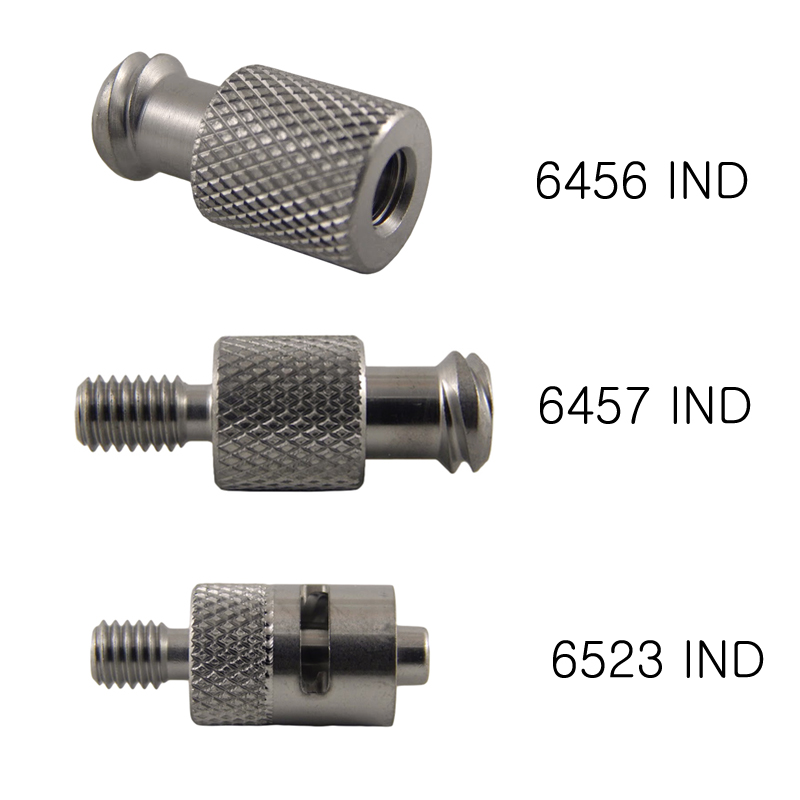

C20-55-098 | 6456 IND | FLL | 10-32 Internal Femaie Thread |
C20-55-105 | 6457 IND | FLL | 10-32 Standard Thread |
C20-55-117 | 6523 IND | MLL | 10-32 Standard Thread |
Tubing Connector ⑤Cat. No | Model | Side 1 | Hose End 사용 Tubing id |
---|
C20-55-063 | 6451 IND | MM FLL | 1.59 ~ 2.38mm |
C20-55-070 | 6452 IND | 3.17 ~ 4.76mm |
C20-55-077 | 6453 IND | 6.35 ~ 7.93mm |
C20-55-100 | 6510 IND | MLL | 1.59 ~ 2.38mm |
C20-55-103 | 6511 IND | 3.17 ~ 4.76mm |
C20-55-115 | 6512 IND | 6.35 ~ 7.93mm |
C20-55-106 | 6513 IND | FLL | 1.59 ~ 2.38mm |
C20-55-109 | 6514 IND | 3.17 ~ 4.76mm |
C20-55-114 | 6515 IND | 6.35 ~ 7.93mm |
C20-55-121 | 6516 IND | ML | 1.59 ~ 2.38mm |
C20-55-102 | 6217 IND | FLL | 3.17 ~ 4.76mm |
3-Way Adapter ⑥Cat. No | Model | Side 1 | Side 2 | Side Arm |
---|

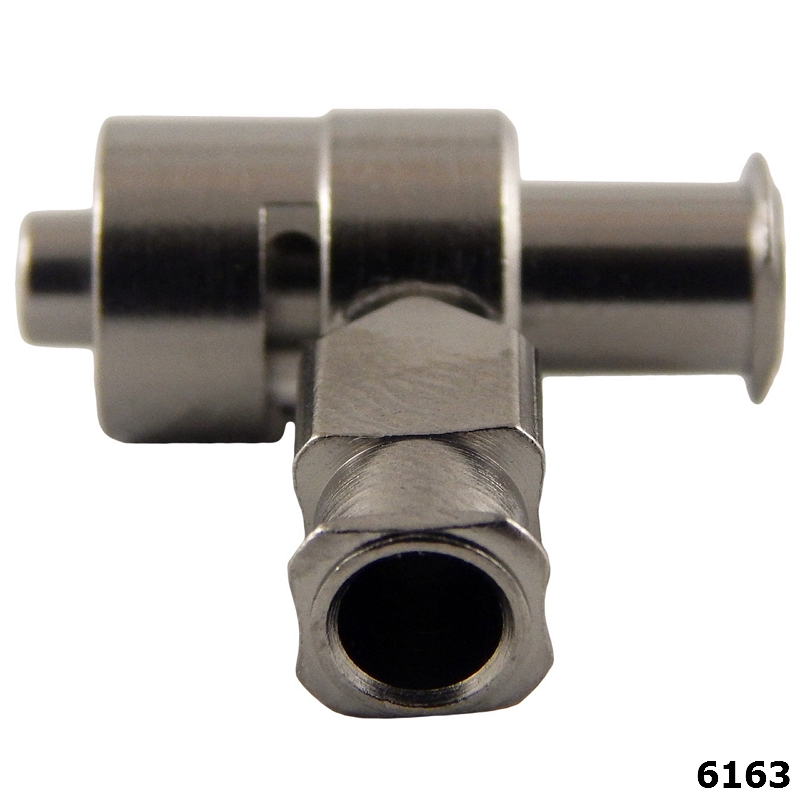

C20-55-194 | 6163 IND | FLL | MLL | FLL |
C20-55-197 | 6134 IND | Y Manifold FLL | MLL | MLL |
C20-55-200 | 6135 IND | MLL | FLL | MLL |
C20-55-203 | 6136 IND | Y Tubing Connector 3 x 8mm |
