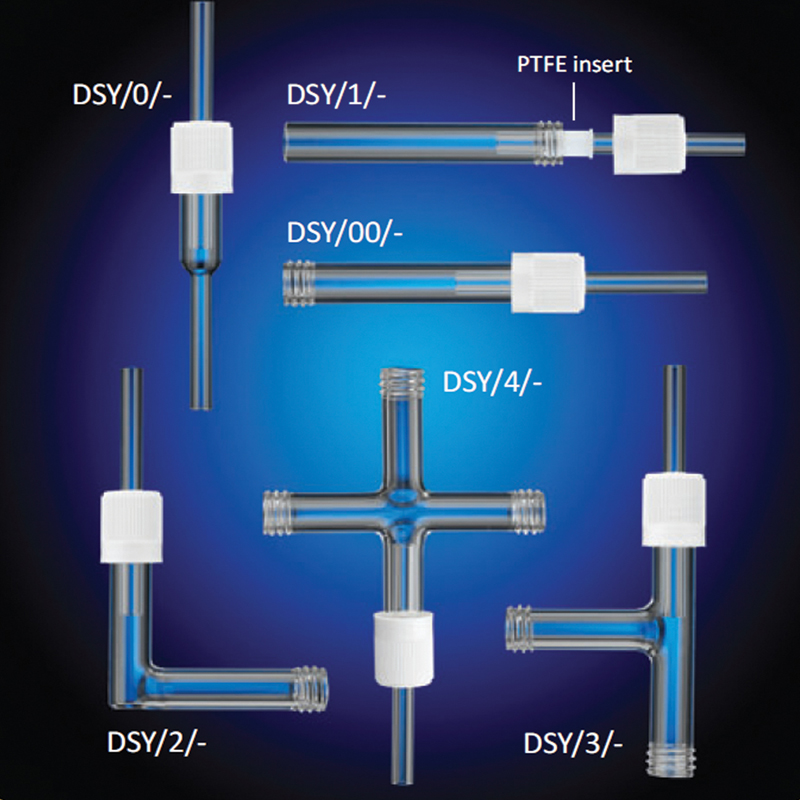

고진공용 스크류 캡 연결관
PTFE High Vacuum Screw Cap Joint
![90d1d94e0a519f5d702b8413ed5e24c2_1637042808_1601.jpg](/uploaded/webedit/2111/90d1d94e0a519f5d702b8413ed5e24c2_1637042808_1601.jpg)
■ 주요특징
■ J Young Stopcock (POR/5 & POR/8)과 직접 연결 가능함
■ Screw Cap을 풀어 연결되어진 Tubing을 조절 할 수 있음
■ Glass Insert Tubing, PTFE Insert & Screw Cap 포함
■ J Young Brand
![90d1d94e0a519f5d702b8413ed5e24c2_1637042842_0661.jpg](/uploaded/webedit/2111/90d1d94e0a519f5d702b8413ed5e24c2_1637042842_0661.jpg)

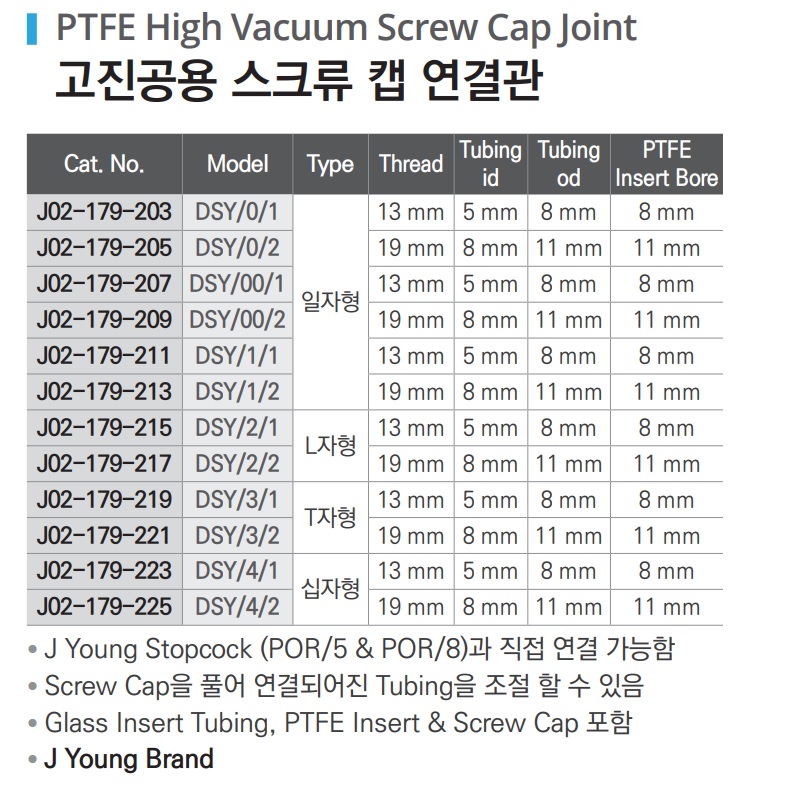

Cat. No | Model | Type | Thread | Tubing id | Tubing od | PTFE Insert Bore |
---|
J02-179-203 | DSY/0/1 | 일자형 | 13 mm | 5 mm | 8 mm | 8 mm |
J02-179-205 | DSY/0/2 | 19 mm | 8 mm | 11 mm | 11 mm |
J02-179-207 | DSY/00/1 | 13 mm | 5 mm | 8 mm | 8 mm |
J02-179-209 | DSY/00/2 | 19 mm | 8 mm | 11 mm | 11 mm |
J02-179-211 | DSY/1/1 | 13 mm | 5 mm | 8 mm | 8 mm |
J02-179-213 | DSY/1/2 | 19 mm | 8 mm | 11 mm | 11 mm |
J02-179-215 | DSY/2/1 | L자형 | 13 mm | 5 mm | 8 mm | 8 mm |
J02-179-217 | DSY/2/2 | 19 mm | 8 mm | 11 mm | 11 mm |
J02-179-219 | DSY/3/1 | T자형 | 13 mm | 5 mm | 8 mm | 8 mm |
J02-179-221 | DSY/3/2 | 19 mm | 8 mm | 11 mm | 11 mm |
J02-179-223 | DSY/4/1 | 십자형 | 13 mm | 5 mm | 8 mm | 8 mm |
J02-179-225 | DSY/4/2 | 19 mm | 8 mm | 11 mm | 11 mm |
