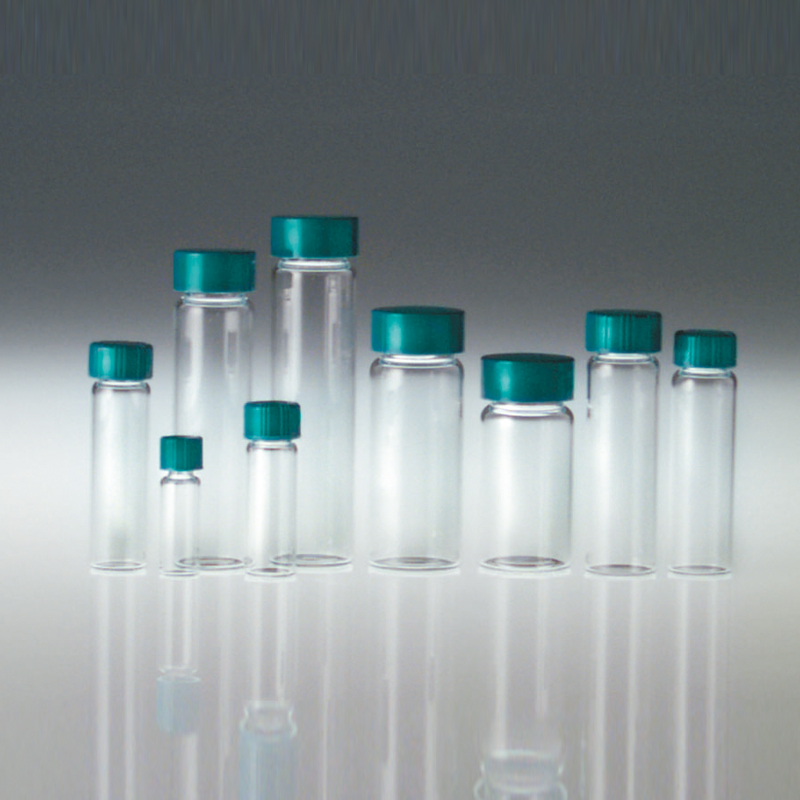

투명 샘플 바이알, 캡 일체형 Clear Sample Vial with Cap

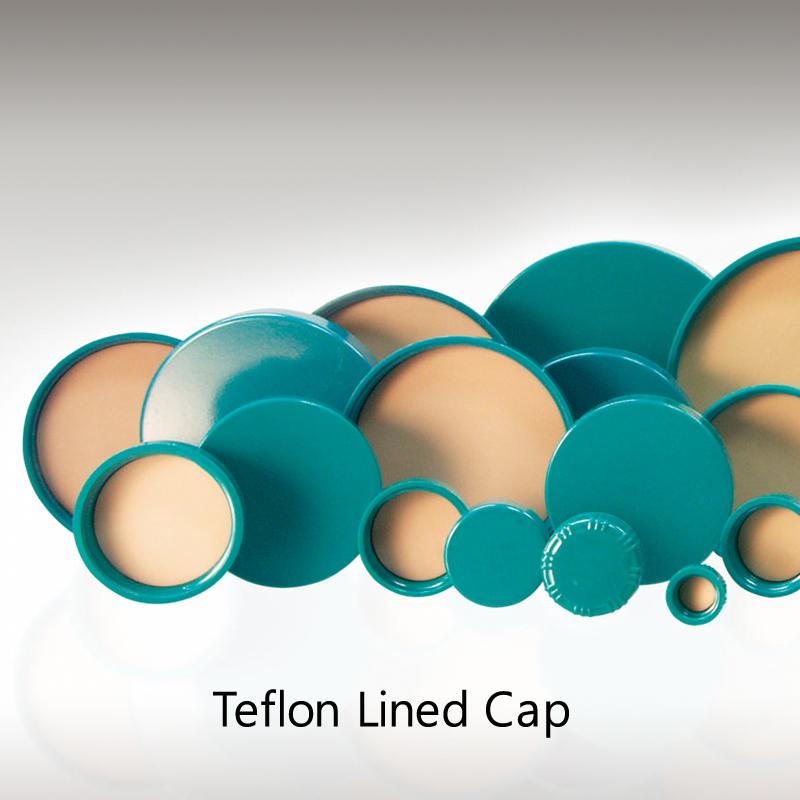

with Teflon Lined Cap Attached
Cat. No. | Model | 용량 | Size (Ø×h) | Neck |
---|
V05-134-052 | C-00978 | 2 ml | 12×35 mm | 8-425 |
V05-134-056 | C-00980 | 4 ml | 15×45 mm | 13-425 |
V05-134-060 | C-00984 | 8 ml | 17×60 mm | 15-425 |
V05-134-064 | C-00988 | 12 ml | 19×65 mm |
V05-134-068 | C-00993 | 16 ml | 21×70 mm | 18-400 |
V05-134-072 | C-01002 | 24 ml | 23×85 mm | 20-400 |
V05-134-076 | C-00999 | 20 ml | 27.25×57 mm | 24-400 |
V05-134-080 | C-01006 | 25 ml | 27.25×70 mm |
V05-134-084 | C-01022 | 40 ml | 27.75×95 mm |
V05-134-088 | C-07876 | 60 ml | 27.75×140 mm |

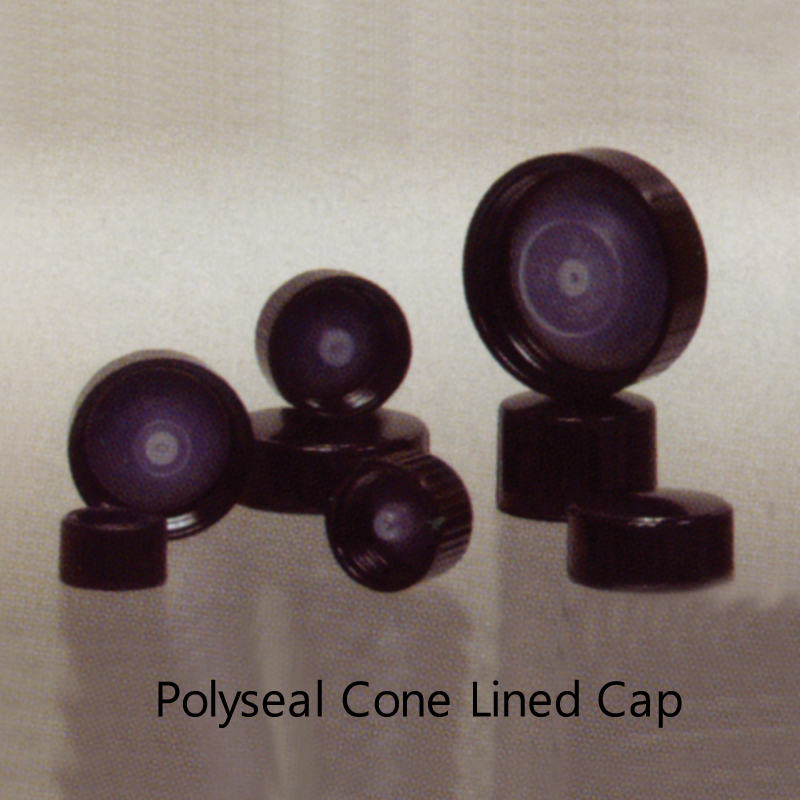

with Polyseal Cone Lined Cap AttachedCat. No. | Model | 용량 | Size (Ø×h) | Neck |
---|
V05-134-112 | C-00982 | 4 ml | 15×45 mm | 13-425 |
V05-134-116 | C-00986 | 8 ml | 17×60 mm | 15-425 |
V05-134-120 | C-00991 | 12 ml | 19×65 mm |
V05-134-124 | C-00995 | 16 ml | 21×70 mm | 18-400 |
V05-134-128 | C-01001 | 20 ml | 27.25×57 mm | 24-400 |
V05-134-132 | C-01007 | 25 ml | 27.25×70 mm |
V05-134-136 | C-04893 | 40 ml | 27.75×95 mm |
V05-134-140 | C-07878 | 60 ml | 27.75×140 mm |
- ● 완벽한 Sealing을 보장하며, 내화학성을 가지고 있음

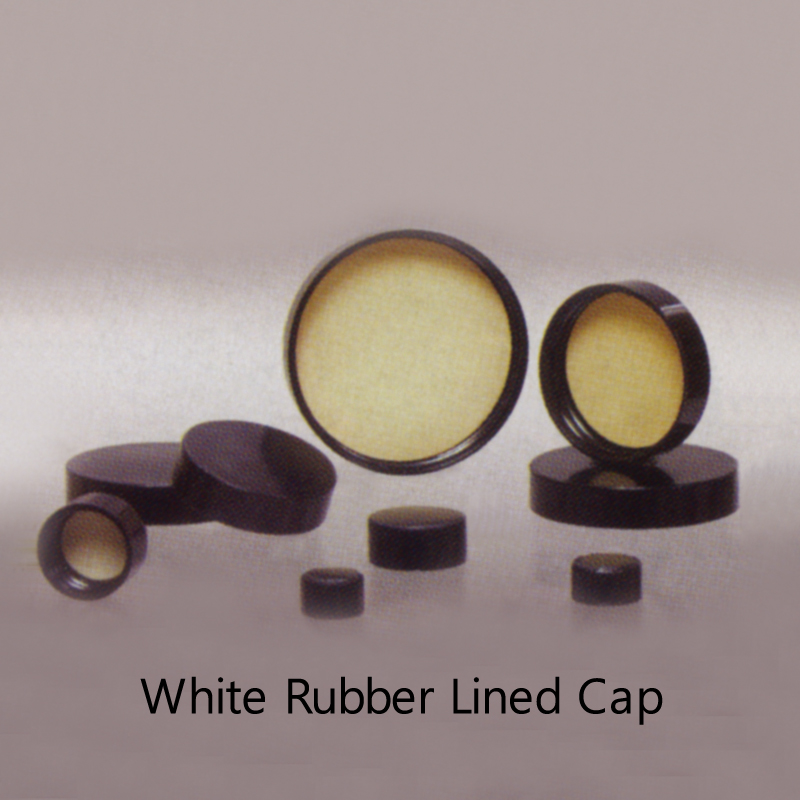

with White Rubber Lined Cap AttachedCat. No. | Model | 용량 | Size (Ø×h) | Neck |
---|
V05-134-154 | C-00981 | 4 ml | 15×45 mm | 13-425 |
V05-134-158 | C-00985 | 8 ml | 17×60 mm | 15-425 |
V05-134-162 | C-05165 | 12 ml | 19×65 mm |
V05-134-166 | C-00994 | 16 ml | 21×70 mm | 18-400 |
V05-134-170 | C-04995 | 20 ml | 27.25×57 mm | 24-400 |
V05-134-174 | C-05167 | 25 ml | 27.25×70 mm |
V05-134-178 | C-04947 | 40 ml | 27.75×95 mm |
V05-134-182 | C-07879 | 60 ml | 27.75×140 mm |
- ● FAD 승인 된 라이너로 식품 및 제약용으로 사용하기에 알맞음
● Autoclavable
with PTFE / Silicon Lined Open-top Cap AttachedCat. No. | Model | 용량 | Size (Ø×h) | Neck |
---|
V05-134-222 | 82030-1235 | 2 ml | 12×35 mm | 8-425 |
V05-134-226 | 84030-1545 | 4 ml | 15×45 mm | 13-425 |
V05-134-228 | 88030-1760 | 8 ml | 17 x 60 mm | 15 - 425 |
V05-134-230 | 812030-1965 | 12 ml | 19×65 mm | 15-425 |
V05-134-234 | 816030-2170 | 16 ml | 21×70 mm | 18-400 |
V05-134-272 | C-01016 | 20 ml | 27.25×57 mm | 24-400 |
V05-134-276 | C-01048 | 25 ml | 27.25×70 mm |
V05-134-280 | C-01031 | 40 ml | 27.75×95 mm |
V05-134-284 | C-07863 | 60 ml | 27.75×140 mm |
이외규격은 전화문의 부탁드립니다.
