대용량 쏙시렛 추출 장치

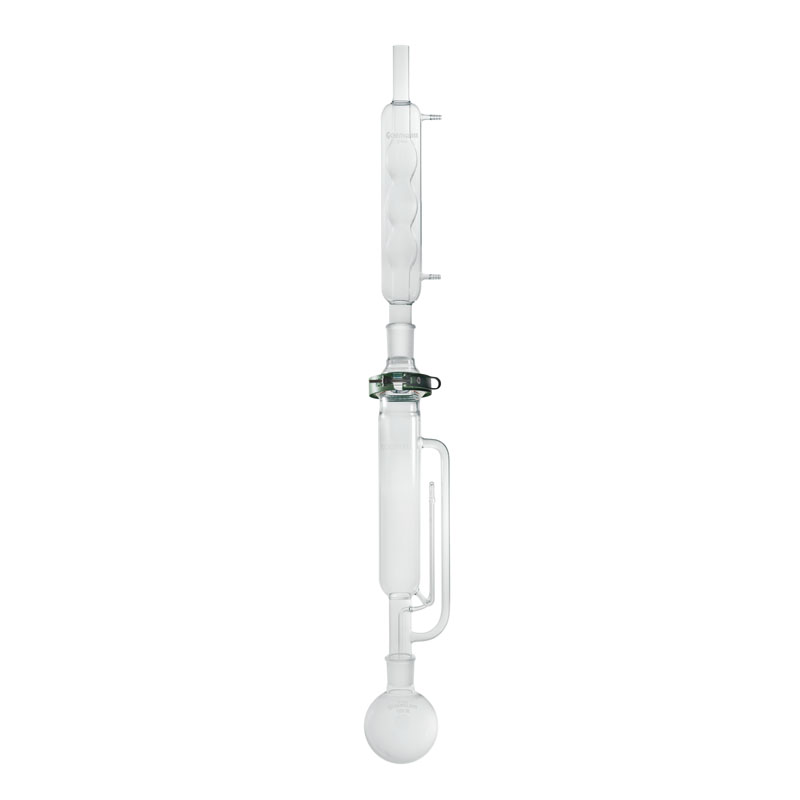

Set Jumbo Soxhlet Extractor
![6f80c94eb83210fac55153c5e52df462_1635404024_9824.jpg](/uploaded/webedit/2110/6f80c94eb83210fac55153c5e52df462_1635404024_9824.jpg)
■ 주요특징
■ Borosilicate Glass 3.3
■ O-ring형 Flange로 구성된 대용량 추출기
■ Teflon O-ring 기본포함
■ Thimble Filter (별도 구매)
■ Chemglass

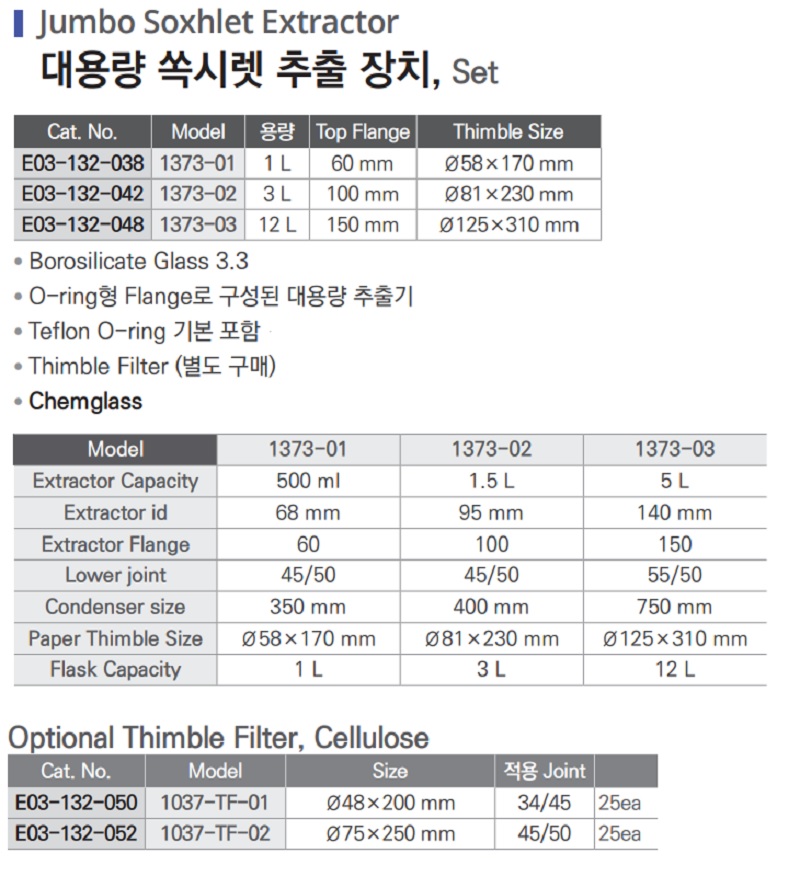

Cat. No | Model | 용량 | Top Flange | Thimble Size |
---|
E03-132-038 | 1373-01 | 1 L | 60 mm | Φ58×170 mm |
E03-132-042 | 1373-02 | 3 L | 100 mm | Φ81×230 mm |
E03-132-048 | 1373-03 | 12 L | 150 mm | Φ125×310 mm |
SpecificationModel | 1373-01 | 1373-02 | 1373-03 |
---|
Extractor Capa. | 500 ml | 1500 ml | 5000 ml |
---|
Extractor I.D. | 68 mm | 95 mm | 140 mm |
---|
Extractor Flange | 60 | 100 | 150 |
---|
Lower joint | 45/50 | 45/50 | 55/50 |
---|
Condenser size | 350 mm | 400 mm | 750 mm |
---|
Paper Thimble size | Φ58×170 mm | Φ81×230 mm | Φ125×310 mm |
---|
Flask Capacity | 1 L | 3 L | 12 L |
---|
Optional Thimble Filter, CelluloseCat. No | Model | Size |
---|
E03-132-050 | 1037-TF-01 | Φ48×200 mm |
E03-132-052 | 1037-TF-02 | Φ75×250 mm |
E03-132-056 | 1037-TF-03 | Φ125×315 mm |
