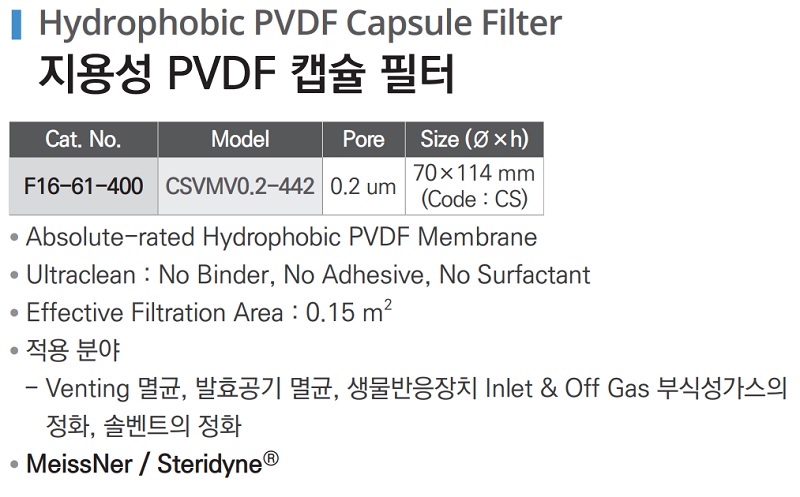

지용성 PVDF 캡슐 필터
Hydrophobic PVDF Capsule Filter
![a8fdf3a346a7458b56c1b9cfd71eadc2_1635484409_1194.jpg](/uploaded/webedit/2110/a8fdf3a346a7458b56c1b9cfd71eadc2_1635484409_1194.jpg)
■ 주요특징
■ Absolute-rated Hydrophobic PVDF Membrane
■ Ultraclean : No Binder, No Adhesive, No Surfactant
■ Effective Filtration Area : 0.15 m2
■ 적용분야
- Venting 멸균, 발효공기 멸균, 생물반응장치 Inlet & Off Gas 부식성가스의 정화, 솔벤트의 정화
■ MeissNer / Steridyne®

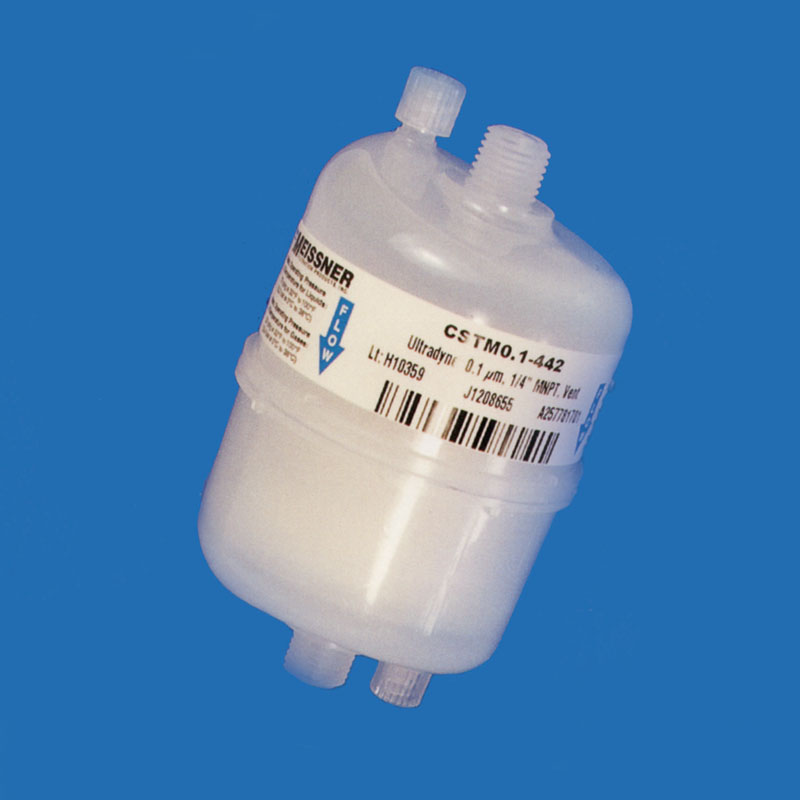

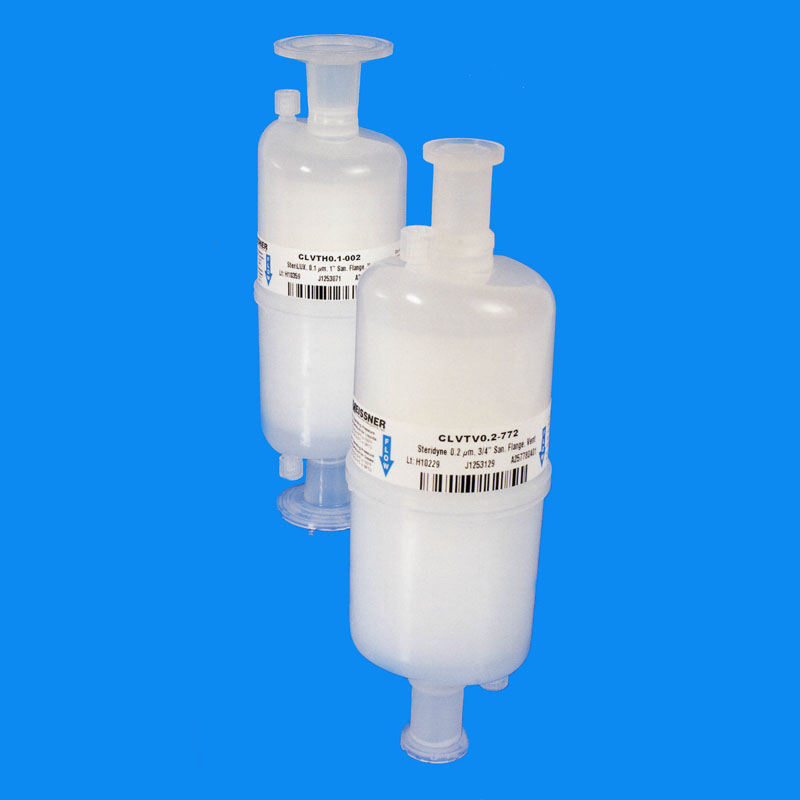

Capsule Filter, MeissNer®
공통 Specification* Housing Material : PP* Filtration Media : PVDF, PP, PTFE, PES* Media Support Component : PP* Sealing Method : Thermal Bonding* Maximum Operating Pressure* Liquid : 5.2 bar at 38℃* Gas : 3.4 bar at 38℃* Operating Temperature Range : 0℃~38℃* Max. Temperature : 71℃ at 2.4 bar* Vent Port- Two Luer-Lock Port for Venting, Draining, Sampling* Inlet Outlet : 1/4" MNPT Standard* Optional- 1" Sanitary Flange (Code : 00)- 3/8" Horsbarb (Code : 22)- 1/2" Horsbarb (Code : cc)- 3/8" FNPT (Code : 55)- 3/8" MNPT (Code : 66)* Size : Φ70×h114 mm (Standard, Code : CS)* Optional- Φ70×h175 mm (Code : CL)- Φ57×h83 mm (Code : CF)- Φ32×h140 mm (Code : CM)- Φ32×h159 mm (Code : CK)* Sterilization : Autoclave at 121℃ (60 min), 125℃ (45 min)* 제조 환경 : Cleanroom, 100% Integrity Tested During Manufacture.
Cat. No. | Model | Pore | Size |
---|
F16-61-400 | CSVMV0.2-442 | 0.2 um | Φ70×h114 mm (Code : CS) |
전화문의 032-861-0282
이메일 vls0711@hanmail.net
