47 mm 진공 정밀 여과 장치
47 mm Vacuum Microfiltration with GL45 Bottle, Kimble®
![851475494baea629d736733f35b56e58_1635837884_6212.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635837884_6212.jpg)
![851475494baea629d736733f35b56e58_1635837884_7236.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635837884_7236.jpg)
![851475494baea629d736733f35b56e58_1635837884_8593.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635837884_8593.jpg)
![851475494baea629d736733f35b56e58_1635837885_0245.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635837885_0245.jpg)
![851475494baea629d736733f35b56e58_1635837885_195.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635837885_195.jpg)
![851475494baea629d736733f35b56e58_1635837888_2724.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635837888_2724.jpg)
![851475494baea629d736733f35b56e58_1635837888_3424.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635837888_3424.jpg)
![851475494baea629d736733f35b56e58_1635837888_4652.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635837888_4652.jpg)
![851475494baea629d736733f35b56e58_1635837888_6043.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635837888_6043.jpg)
■ 주요특징
■ Borosilicate Glass, USP Type Ⅰ and ASTM E438, Type Ⅰ, Class A
■ Steam Autoclavable
■ 여과액이 메디아 타입의 병으로 바로 모아지는 제품
■ SUS Base는 끈끈한 액체 또는 단백질액 여과 및 초청정 여과액 생성 가능
■ 2 Type
- Type 1 : Glass Fritted Support Base Set (40 ~ 60 um)
- Type 2 : SUS Support Base Set (80 Mesh)
■ Kimble®
Cat. No | Model | Description |
---|

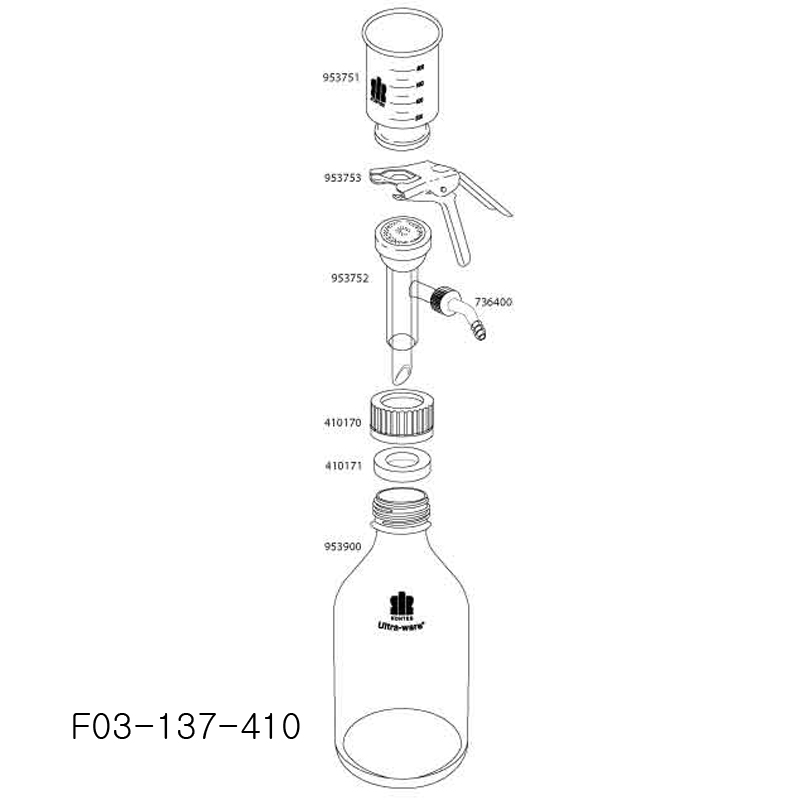

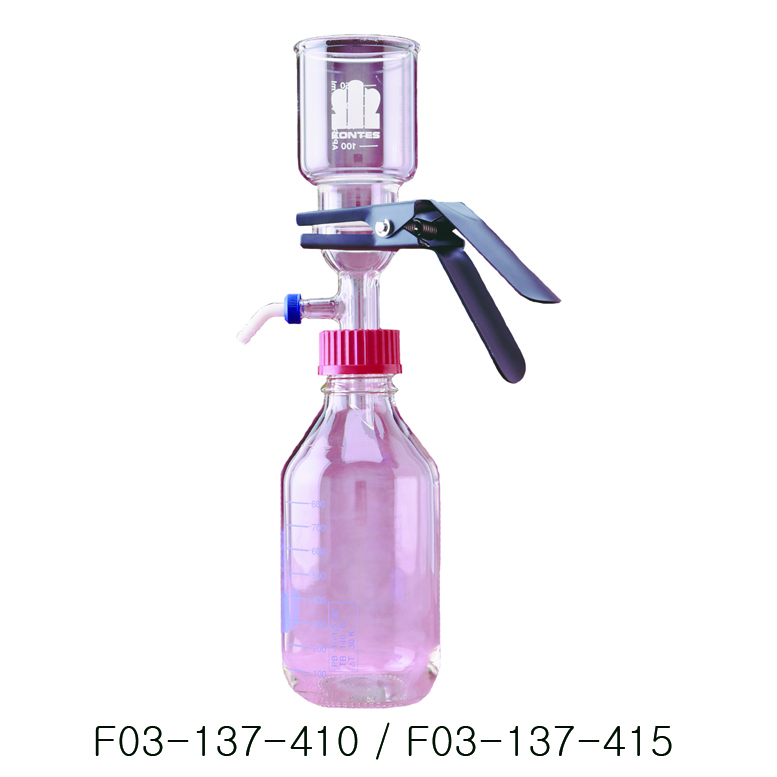

F03-137-410 | 953750-5347 | 47 mm Fritted Glass Base Set |

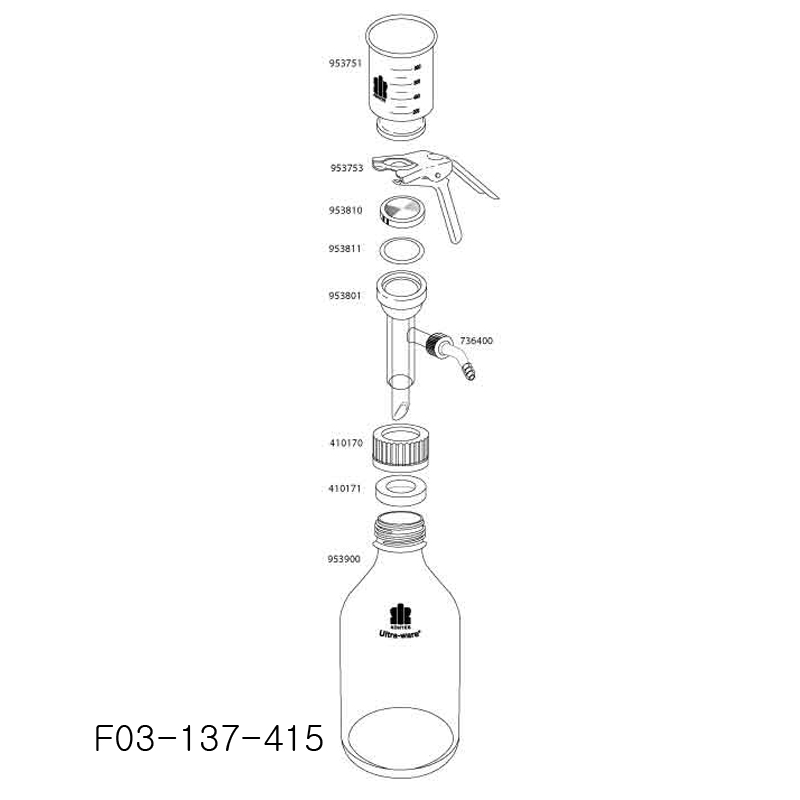

F03-137-415 | 953800-5347 | 47 mm SUS Support Base Set |
구성 Component, 47 mm Fritted Glass Base SetCat. No | Model | Description |
---|

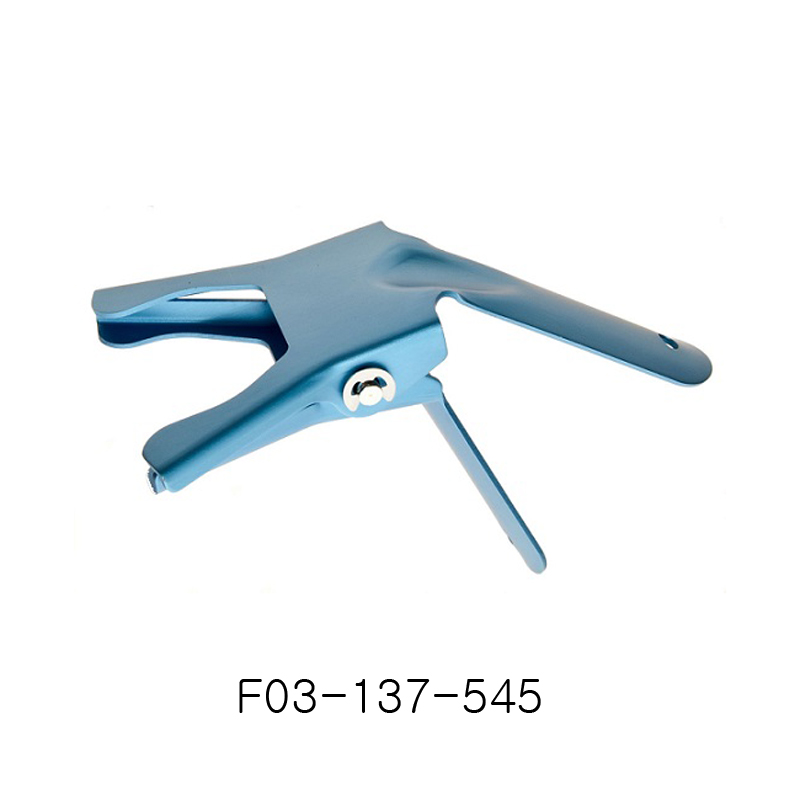

F03-137-545 | 953753-0000 | Clamp, 47 mm, Anodized Aluminium |

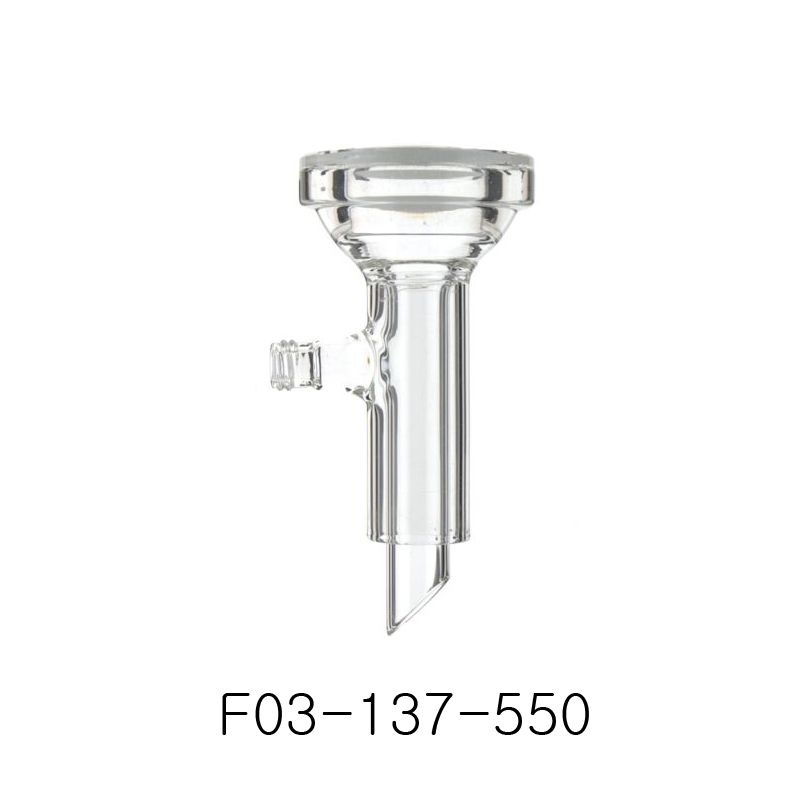

F03-137-550 | 953752-5047 | Base, 47 mm Fritted Glass Support |

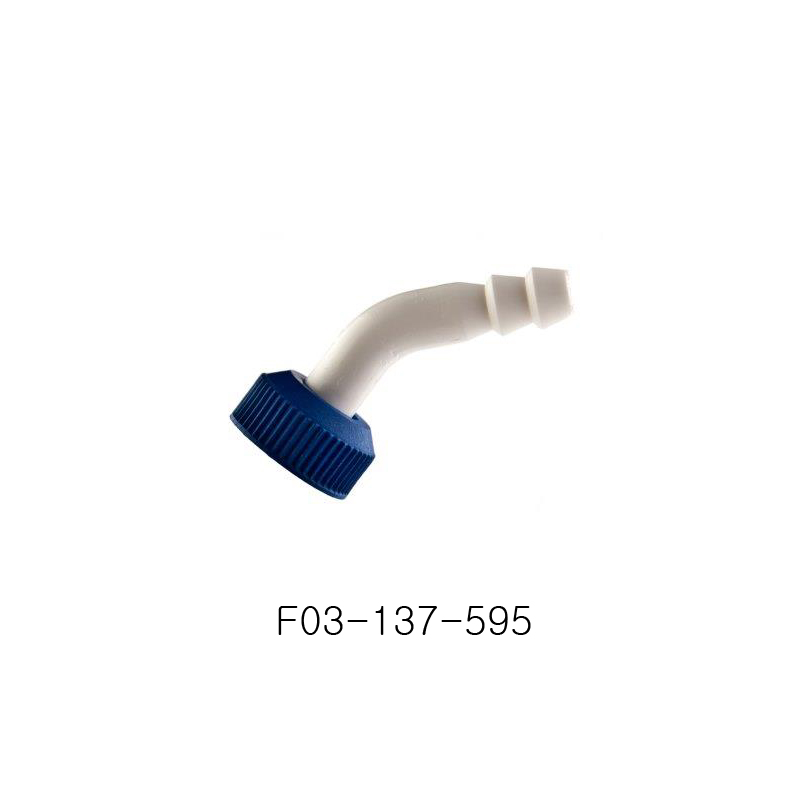

F03-137-595 | 736400-1413 | Tubing Adapter, Ø60 mm × 13-425 |
F03-137-600 | 410171-4226 | PTFE/Silicon Sealing Ring, 42 mm |
F03-137-605 | 410170-4534 | PBT GL45 Open Top Cap |
F03-137-610 | 953900-0010 | Vacuum/Pressure Bottle, 1 L |

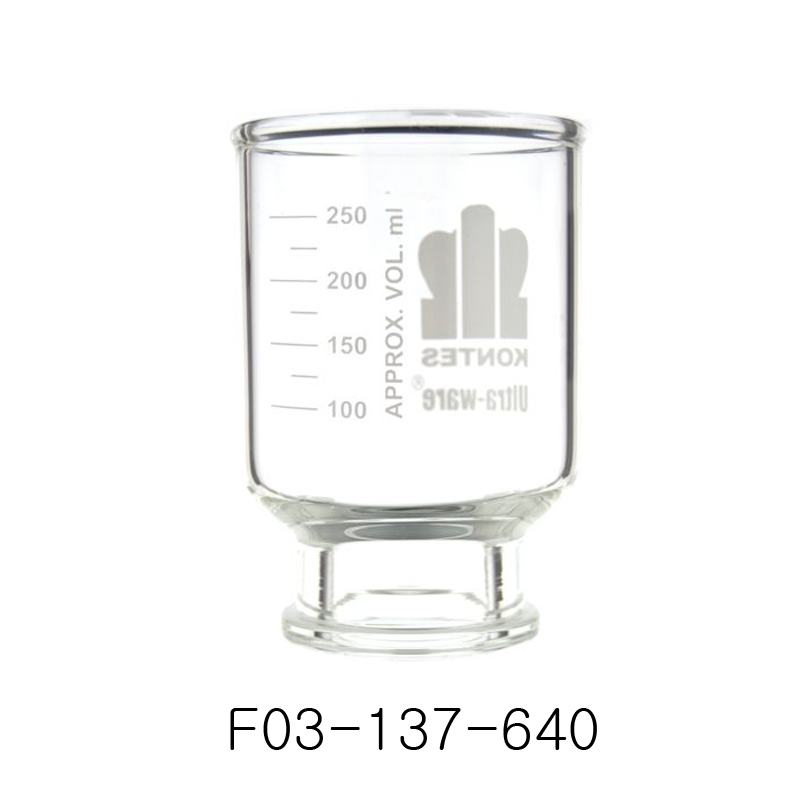

F03-137-640 | 953751-0000 | Funnel, 47 mm, 300 ml |
구성 Component, 47 mm SUS Support Base SetCat. No | Model | Description |
---|
F03-137-545 | 953753-0000 | Clamp, 47 mm, Anodized Aluminium |
F03-137-555 | 953801-5047 | Base, 47 mm Glass Support |

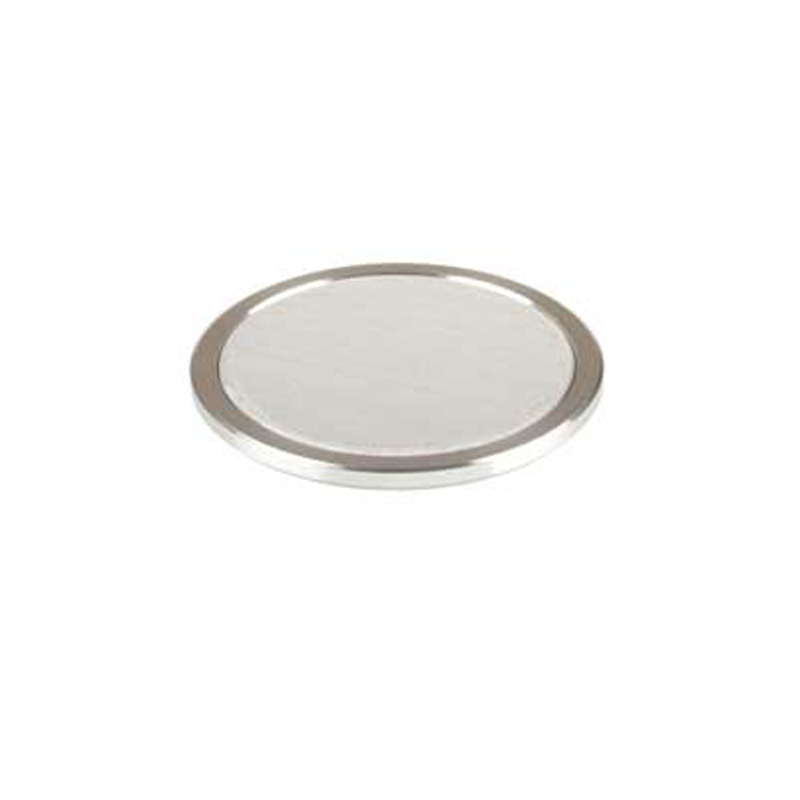

F03-137-580 | 953810-0000 | SUS 80 Mesh Screen, 47 mm |
F03-137-585 | 953811-4701 | PTFE Support Screen Gasket |
F03-137-595 | 736400-1413 | PP Tubing Adapter, Ø60 mm × 13-425, with O-ring |
F03-137-600 | 410171-4226 | PTFE/Silicon Sealing Ring, 42 mm |
F03-137-605 | 410170-4534 | PBT GL45 Open Top Cap |
F03-137-610 | 953900-0010 | Vacuum/Pressure Bottle, 1 L |
F03-137-640 | 953751-0000 | Funnel, 47 mm, 300 ml |
공통 AccessoryCat. No | Model | Description |
---|
F03-137-645 | 953771-0000 | Funnel, 47 mm, 500 ml |
F03-137-650 | 953781-0000 | Graduated Funnel, 47 mm, 1 L |
F03-137-745 | 923910-0110 | Pressure/Vacuum Diaphragm Pump, Max.Capa 1.1 CFM |
