47 mm 어댑터형 진공 정밀 여과 장치
47 mm Vacuum Microfiltration with Pickup Adapter, Kimble®
![851475494baea629d736733f35b56e58_1635839159_6533.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635839159_6533.jpg)
![851475494baea629d736733f35b56e58_1635839160_2293.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635839160_2293.jpg)
![851475494baea629d736733f35b56e58_1635839160_5243.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635839160_5243.jpg)
![851475494baea629d736733f35b56e58_1635839161_091.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635839161_091.jpg)
![851475494baea629d736733f35b56e58_1635839161_3203.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635839161_3203.jpg)
![851475494baea629d736733f35b56e58_1635839164_6781.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635839164_6781.jpg)
![851475494baea629d736733f35b56e58_1635839164_93.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635839164_93.jpg)
![851475494baea629d736733f35b56e58_1635839165_4618.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635839165_4618.jpg)
![851475494baea629d736733f35b56e58_1635839165_7291.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635839165_7291.jpg)
![851475494baea629d736733f35b56e58_1635839166_0121.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635839166_0121.jpg)
■ 주요특징
■ Borosilicate Glass, USP Type Ⅰ and ASTM E438, Type Ⅰ, Class A
■ 어댑터는 시약병에서 솔벤트를 끌어올려 필터를 통해 플라스크로 연결
■ 여과가 완료된 후, 어댑터의 HI-VAC Valve는 진공 제거를 위해 닫힐 수 있음
■ Filter Base는 진공라인이 오염되는 것을 막기 위해 Hose Connection이 있음
■ Kimble®

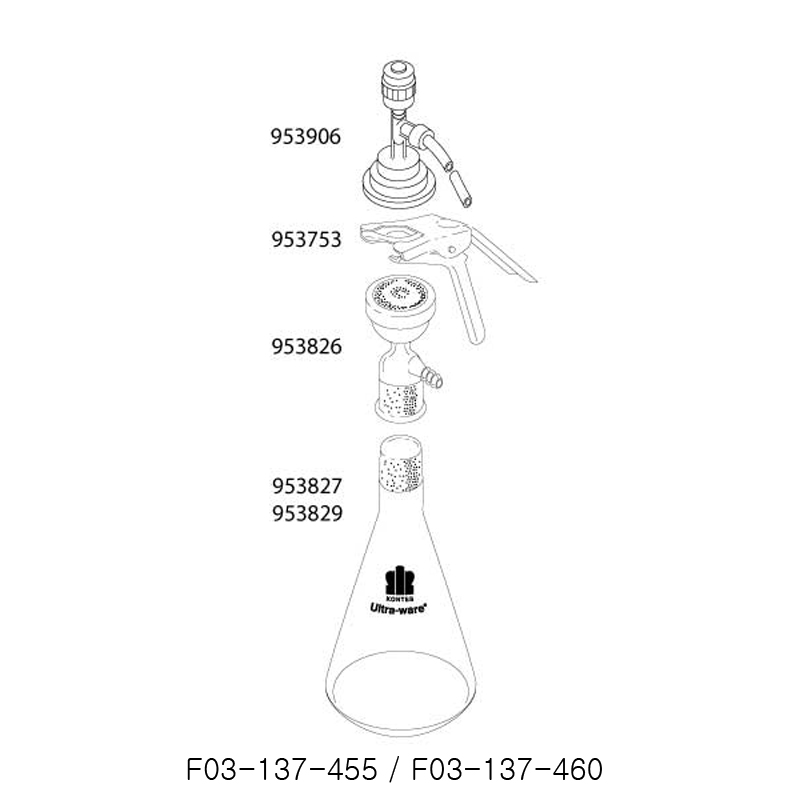

Cat. No | Model | Description | Flask 용량 |
---|

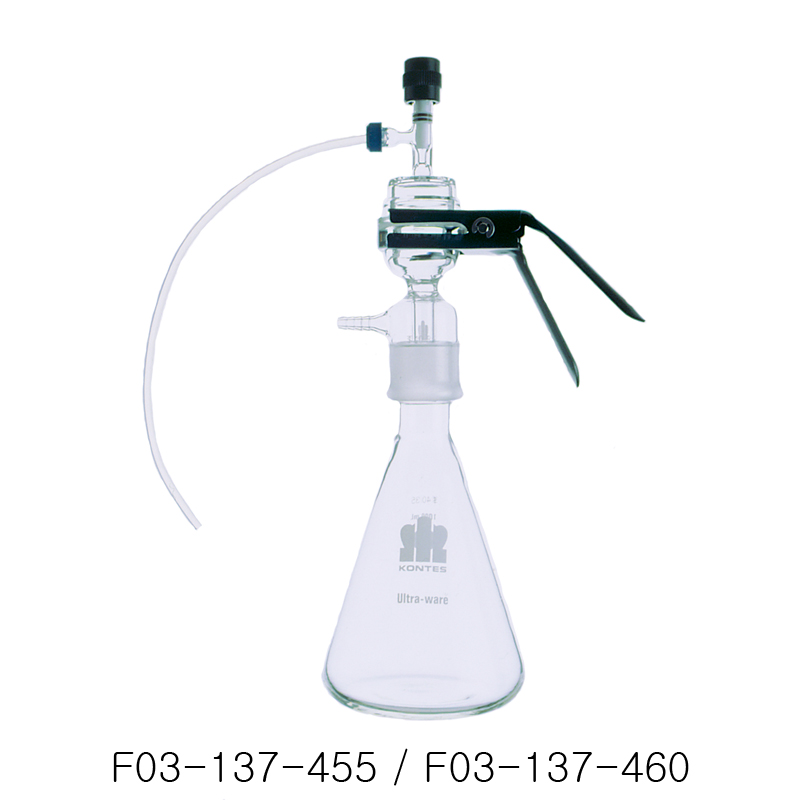

F03-137-455 | 953820-1047 | 47 mm Fritted Glass Base Set with 40/35 Joint and Solvent Pick-Up Adapter | 1 L |
F03-137-460 | 953820-4047 | 4 L |
1 L용 구성 ComponentCat. No | Model | Description |
---|

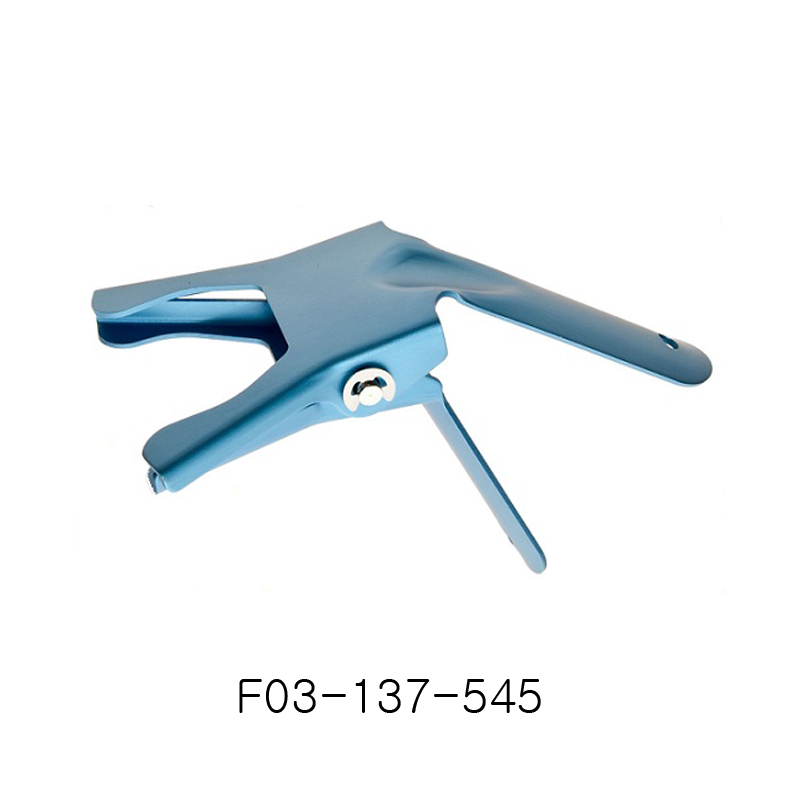

F03-137-545 | 953753-0000 | Clamp, 47 mm, Anodized Aluminium |

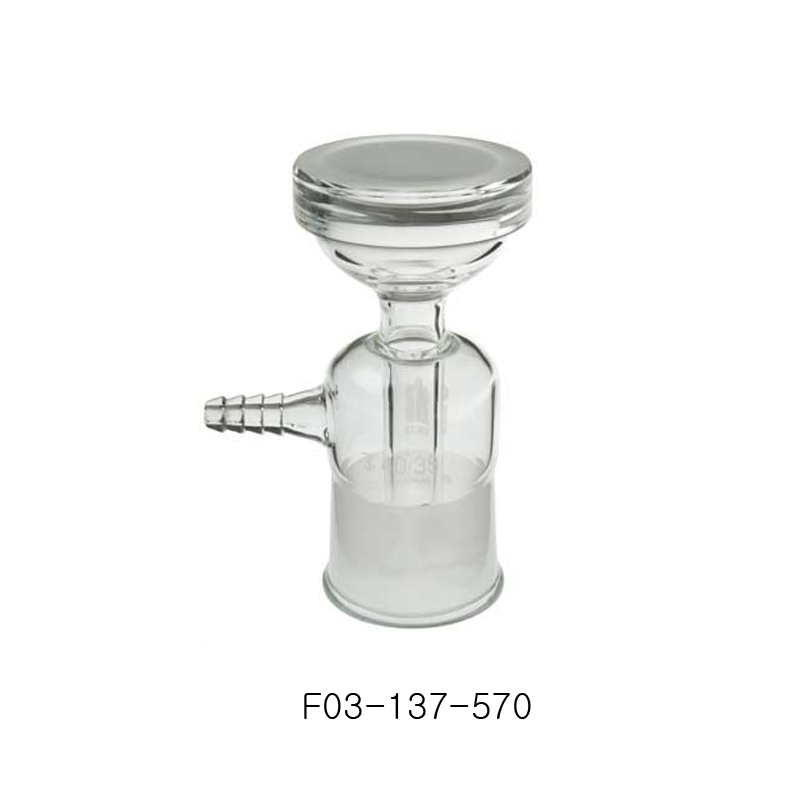

F03-137-570 | 953826-0000 | Base, 47 mm, 40/35 Fritted Glass Support |

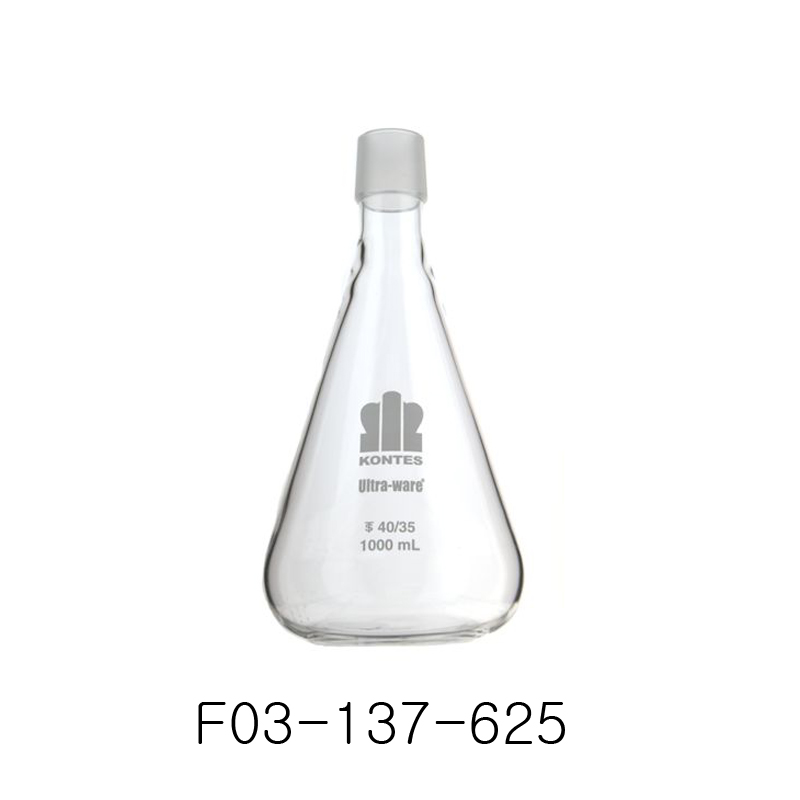

F03-137-625 | 953827-0000 | 40/35 Inner Joint Flask, 1 L |

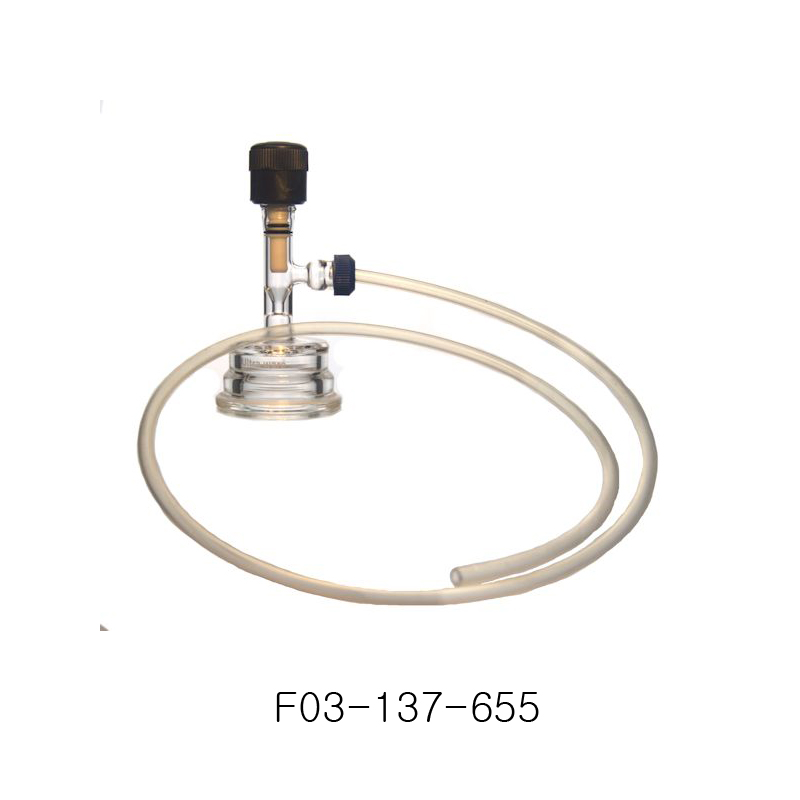

F03-137-655 | 953906-0047 | Standard Pickup Adapter, 47 mm, with PTFE Tubing |
4 L용 구성 ComponentCat. No | Model | Description |
---|
F03-137-545 | 953753-0000 | Clamp, 47 mm, Anodized Aluminium |
F03-137-570 | 953826-0000 | Base, 47 mm, 40/35 Fritted Glass Support |
F03-137-635 | 953829-0000 | 40/35 Inner Joint Flask, 4 L |
F03-137-655 | 953906-0047 | Standard Pickup Adapter, 47 mm, with PTFE Tubing |
Optional AccessoryCat. No | Model | Description |
---|
F03-137-630 | 953828-0000 | 40/35 Inner Joint Flask, 2 L |
F03-137-635 | 953829-0000 | 40/35 Inner Joint Flask, 4 L |
F03-137-645 | 953771-0000 | Glass Funnle, 47 mm, 500 ml |
F03-137-650 | 953781-0000 | Glass Funnle, 47 mm, 1 L |

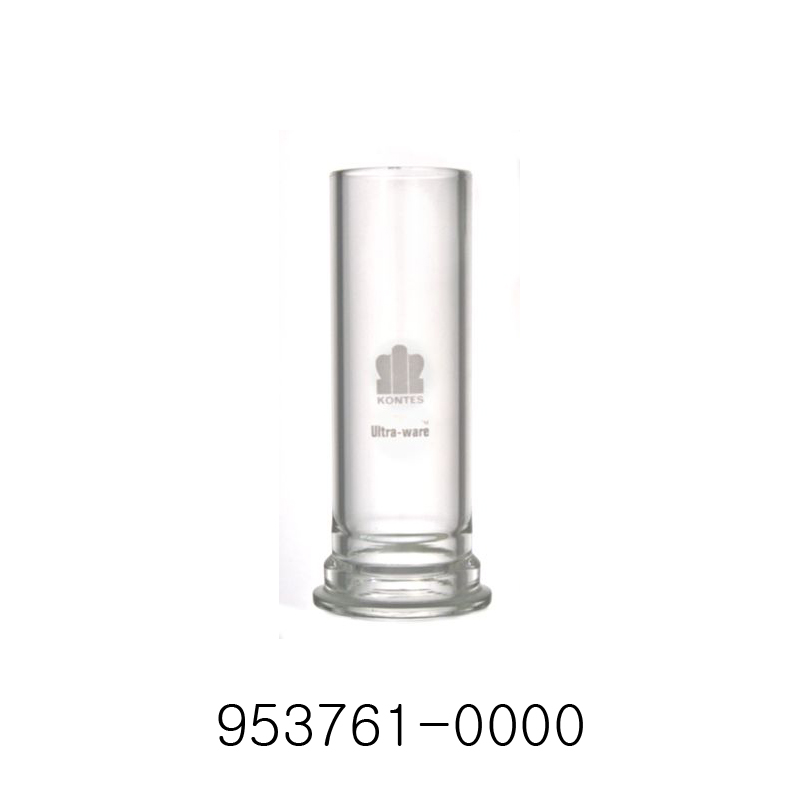

F03-137-730 | 953761-0000 | Glass Funnle, 47 mm, 100 ml |

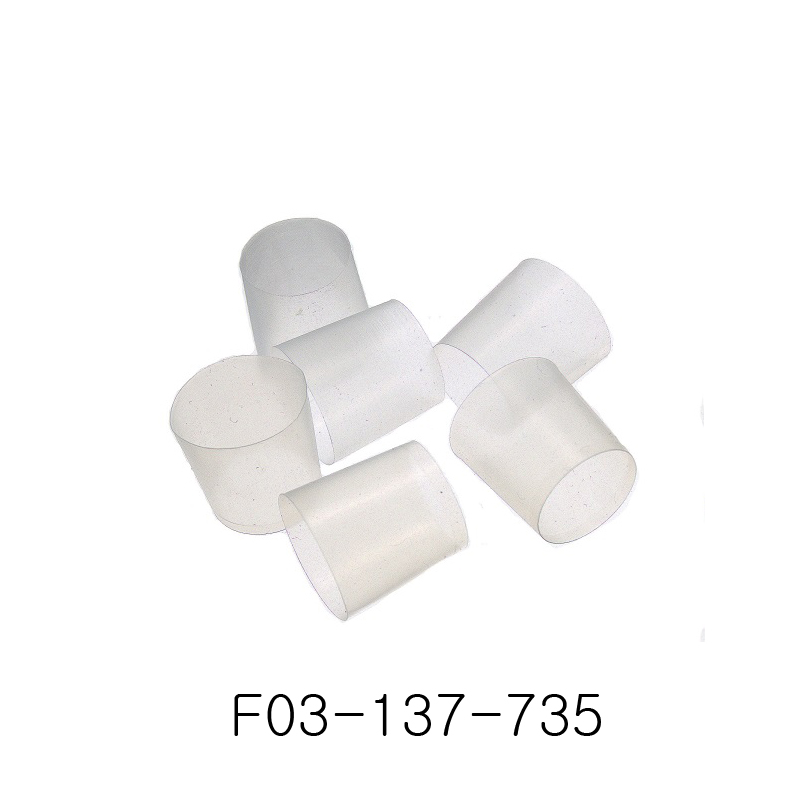

F03-137-735 | 676001-4035 | PTFE Sleeve, 40/35 |

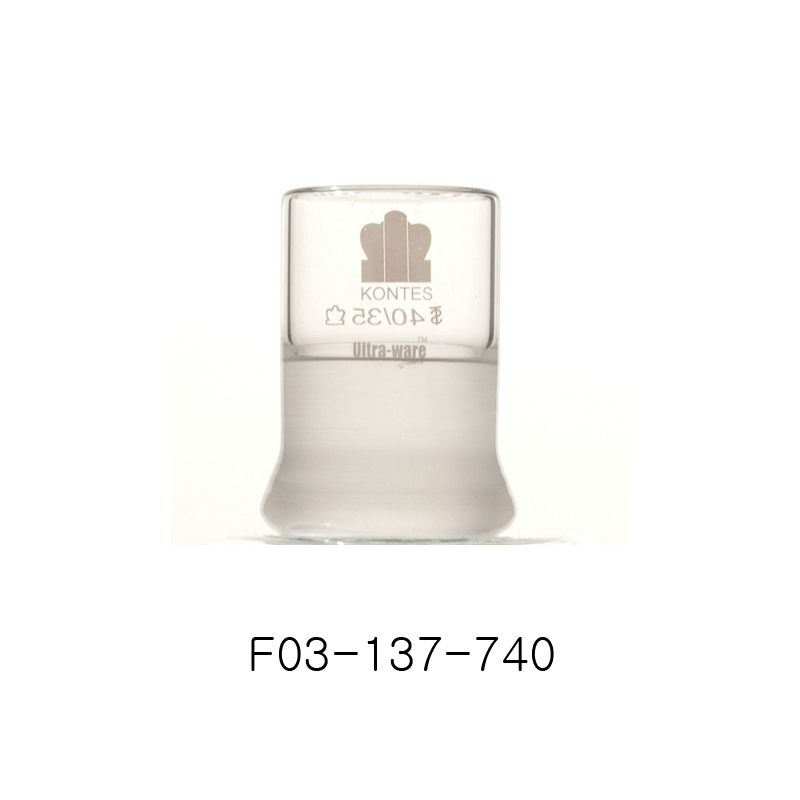

F03-137-740 | 953830-0000 | Glass Cap, 40/35 |
