90mm 베이스 교체형 진공 정밀 여과 장치
90 mm Vacuum Microfiltration with Replaceable Base
![851475494baea629d736733f35b56e58_1635841231_641.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635841231_641.jpg)
![851475494baea629d736733f35b56e58_1635841231_729.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635841231_729.jpg)
![851475494baea629d736733f35b56e58_1635841231_9319.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635841231_9319.jpg)
![851475494baea629d736733f35b56e58_1635841232_16.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635841232_16.jpg)
![851475494baea629d736733f35b56e58_1635841232_38.jpg](/uploaded/webedit/2111/851475494baea629d736733f35b56e58_1635841232_38.jpg)
■ 주요특징
■ Borosilicate Glass, USP Type Ⅰ and ASTM E438, Type Ⅰ, Class A
■ 샘플의 양이 많거나 미립자 부하가 클 때 알맞음
■ 여과율이 47 mm Filter보다 4배까지 빠름
■ Disc는 막히거나 샘플 오염이 의심되는 경우 교체 가능
■ Prefilter : Ø70 mm
■ Filter Area : approx. 38.5 ㎠
■ Kimble®
Cat. No | Model | Description |
---|

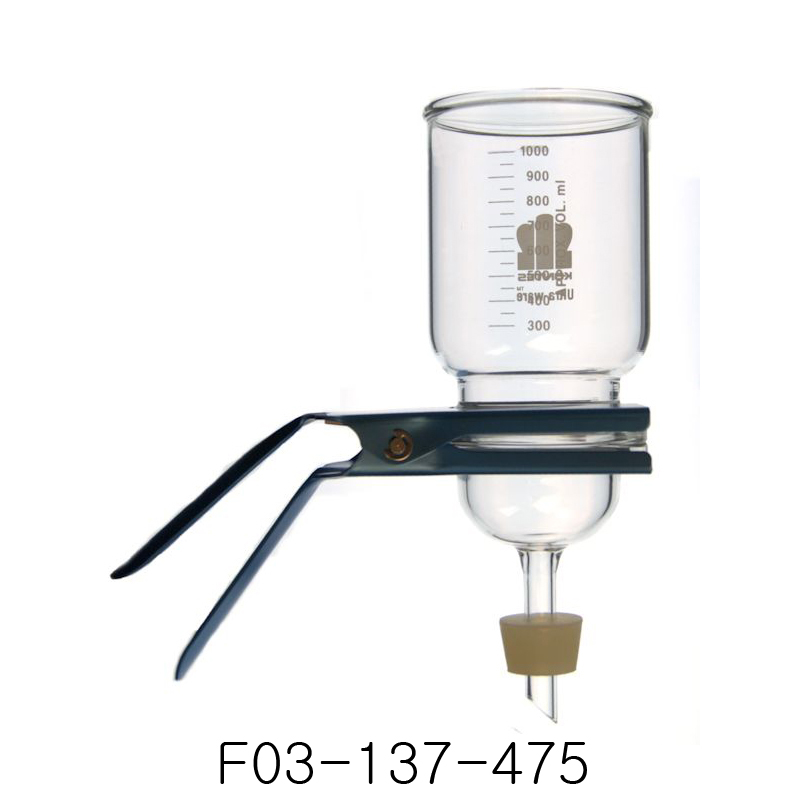

F03-137-475 | 953770-0090 | 90 mm Replaceable Fritted Glass Base Set |

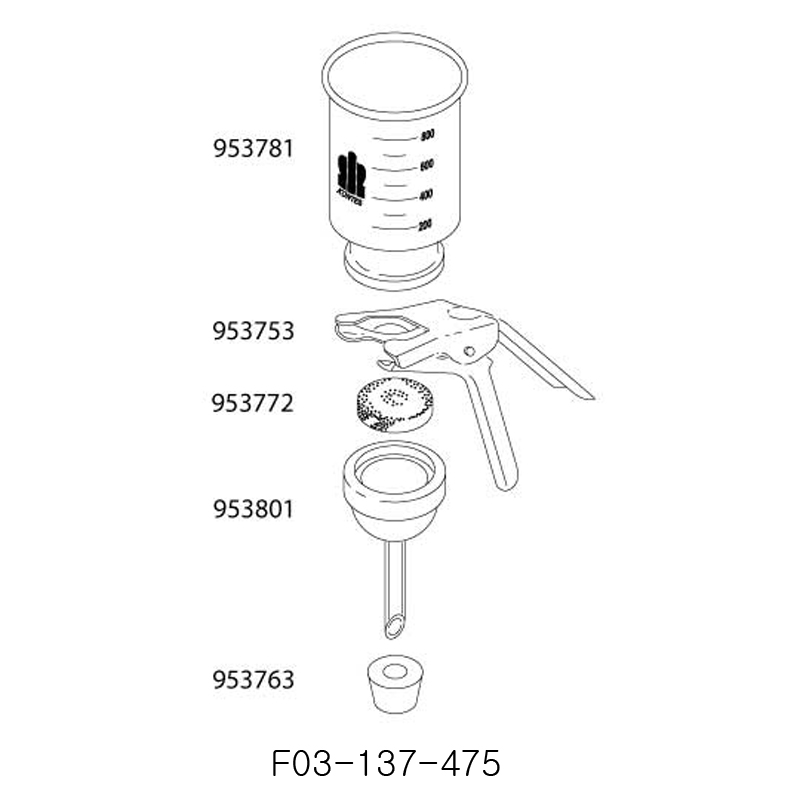

구성 ComponentCat. No | Model | Description |
---|
F03-137-660 | 953753-0090 | Clamp, 90 mm, Anodized Aluminium |

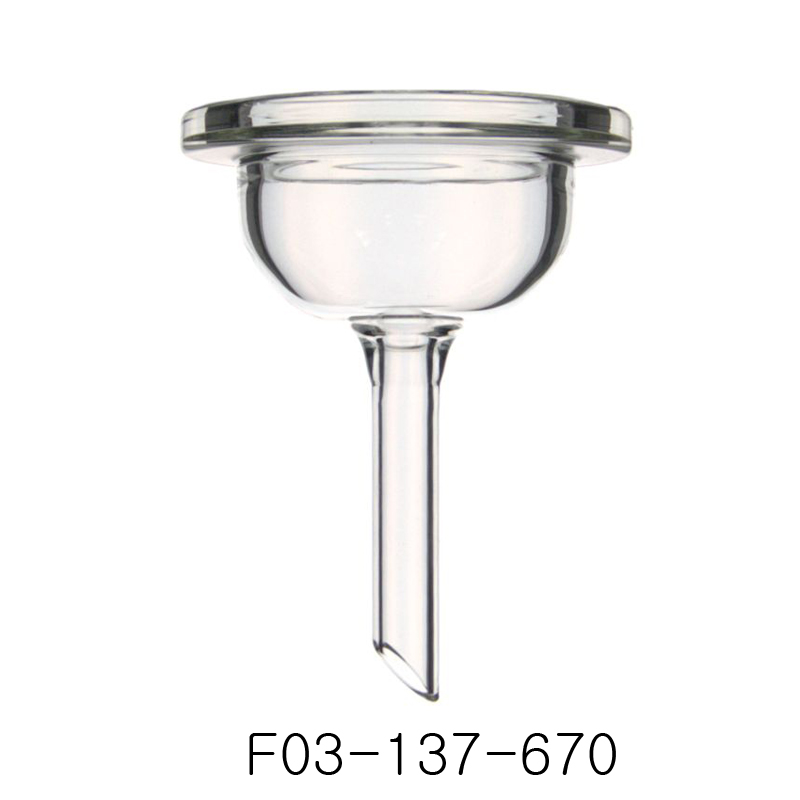

F03-137-670 | 953801-0090 | Base, 90 mm Glass Support |

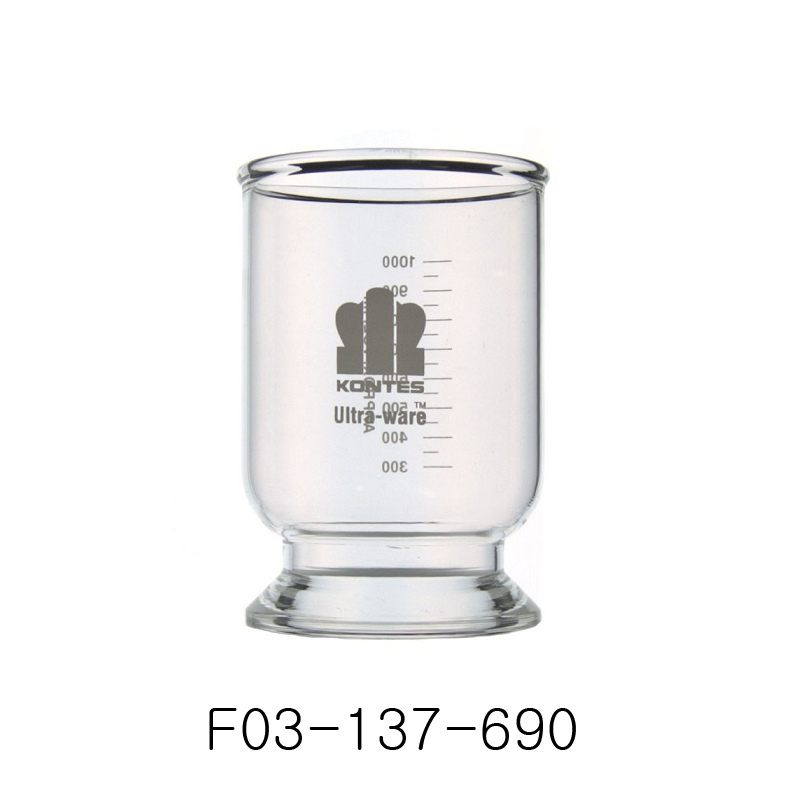

F03-137-690 | 953781-0090 | Funnel, 90 mm, 1 L |
F03-137-695 | 953763-0801 | Stopper, #8 Silicon, Ø14 mm Hole |

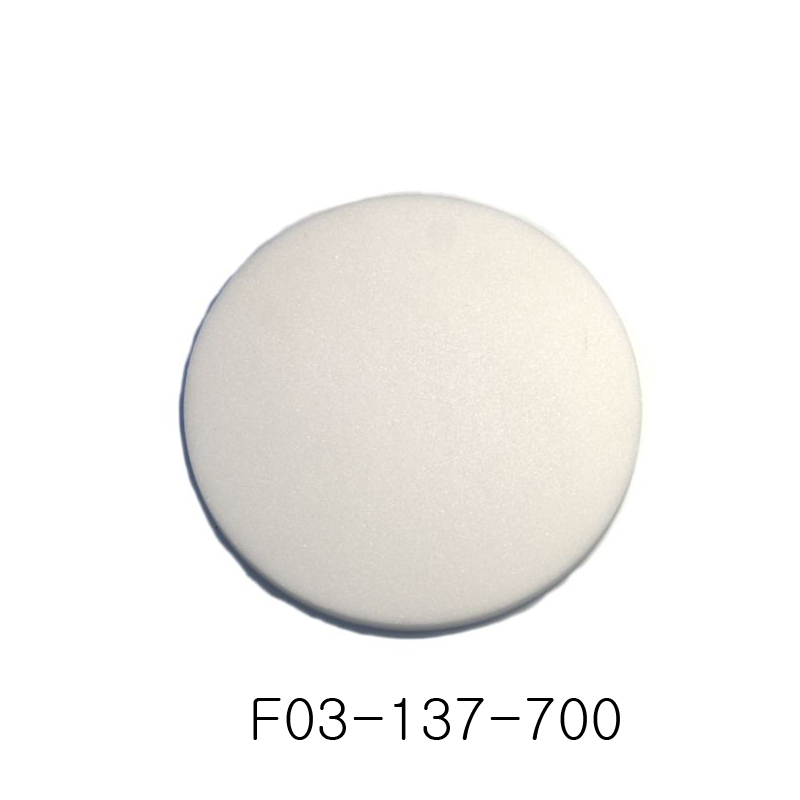

F03-137-700 | 953772-0090 | Fritted Glass Support Disc, 90 mm, 40 ~ 60 um |
Optional AccessoryCat. No | Model | Description |
---|
F03-137-720 | 953760-0000 | Filtering Flask, 1 L, with #8 Joint & Ø10 mm Connection |
F04-137-556 | 953760-1002 | Safety Coated Filtering Flask, 1 L, with #8 Joint & Ø10 mm Connection |
