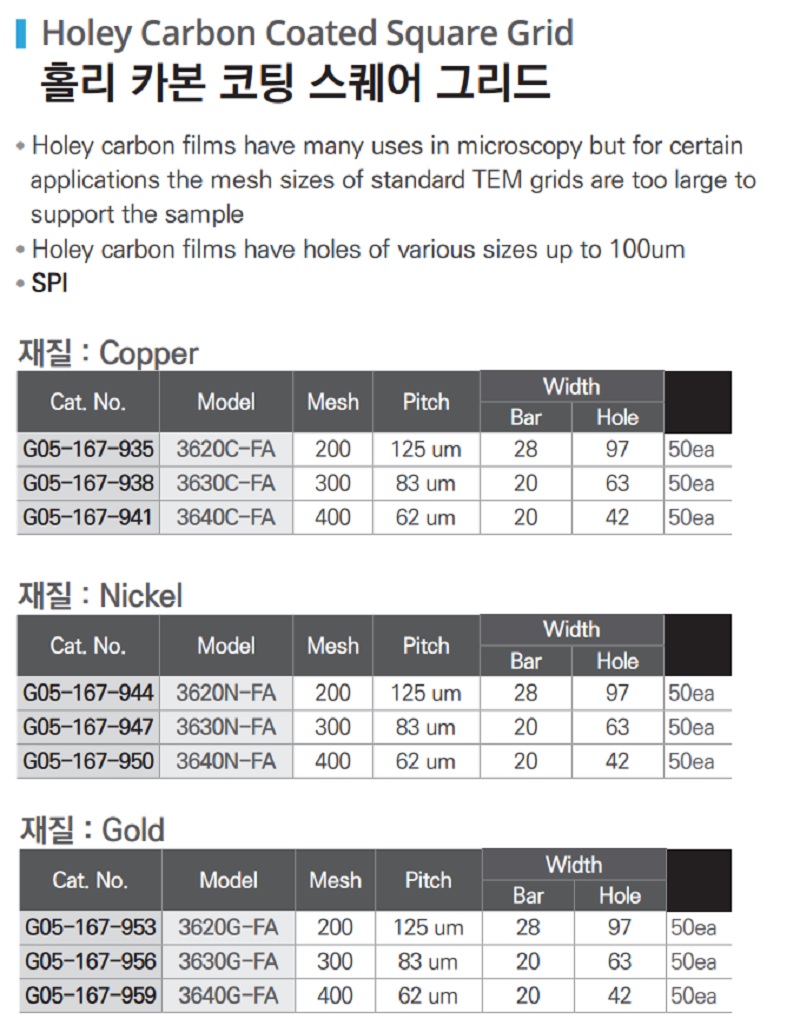

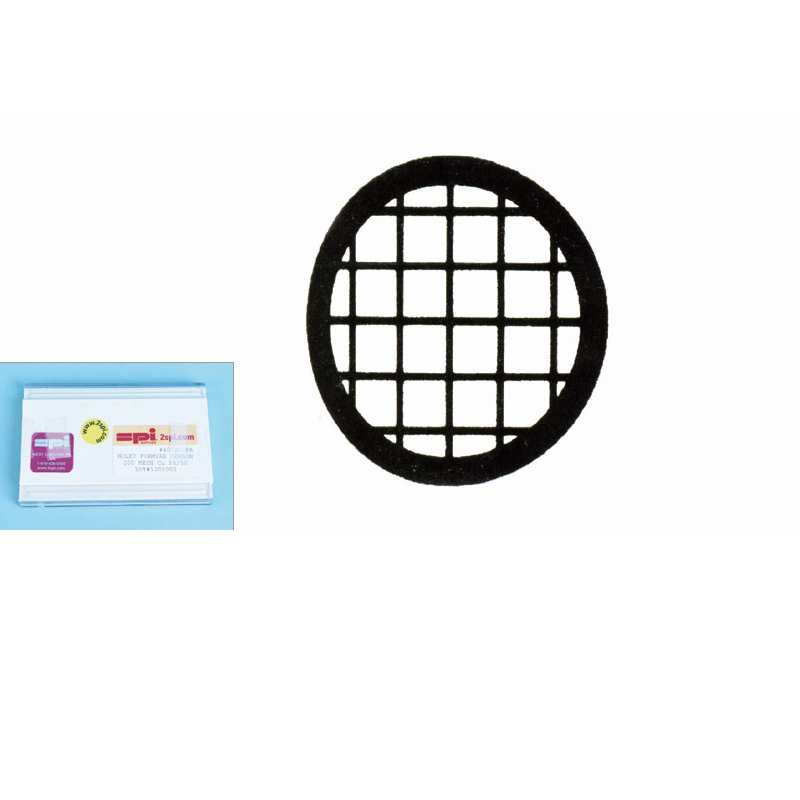

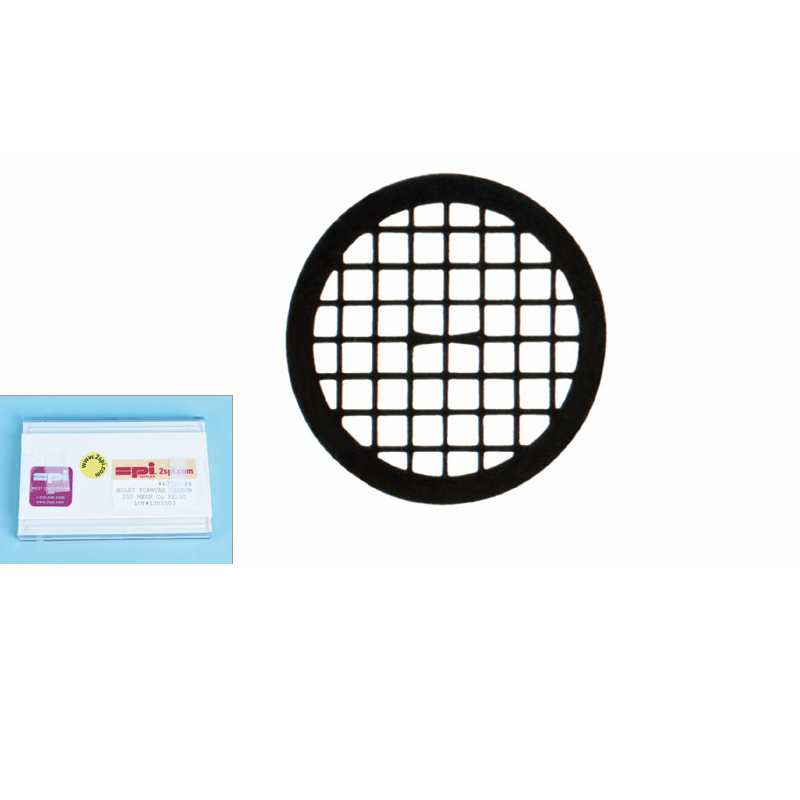

홀리 카본 코팅 스퀘어 그리드

Holey Carbon Coated Spuare Grid

■ Holey carbon films have many uses in microscopy but for certain applications the mesh sizes of standard TEM grids are too large to support the sample.
■ Holey carbon films have holes of various sizes up to 100μm.
■ SPI

Material :Copper

Cat. No.	Model	Mesh	Pitch	Width
				Bar	Hole
G05-167-935	3620C-FA	200	125 um	35	90
G05-167-938	3630C-FA	300	83 um	20	63
G05-167-941	3640C-FA	400	62 um	20	42

Material : Nickel

Cat. No.	Model	Mesh	Pitch	Width
				Bar	Hole
G05-167-944	3620N-FA	200	125 um	35	90
G05-167-947	3630N-FA	300	83 um	20	63
G05-167-950	3640N-FA	400	62 um	20	42

Material : Gold

Cat. No.	Model	Mesh	Pitch	Width
				Bar	Hole
G05-167-953	3620G-FA	200	125 um	35	90
G05-167-956	3630G-FA	300	83 um	20	63
G05-167-959	3640G-FA	400	62 um	20	42
