제품명 |
멀티포지션

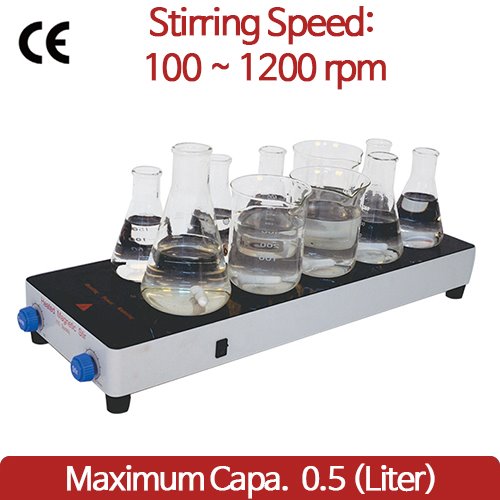

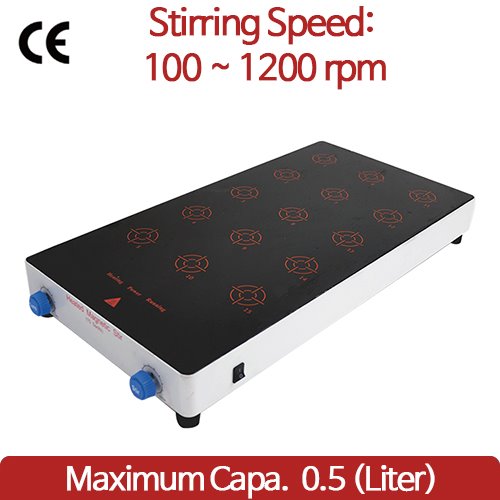

핫플레이트 스티러 Multi-Position Hot Plate Stirrers |
멀티포지션
핫플레이트 스티러 Multi-Position Hot Plate Stirrers |
멀티포지션
핫플레이트 스티러 Multi-Position Hot Plate Stirrers |

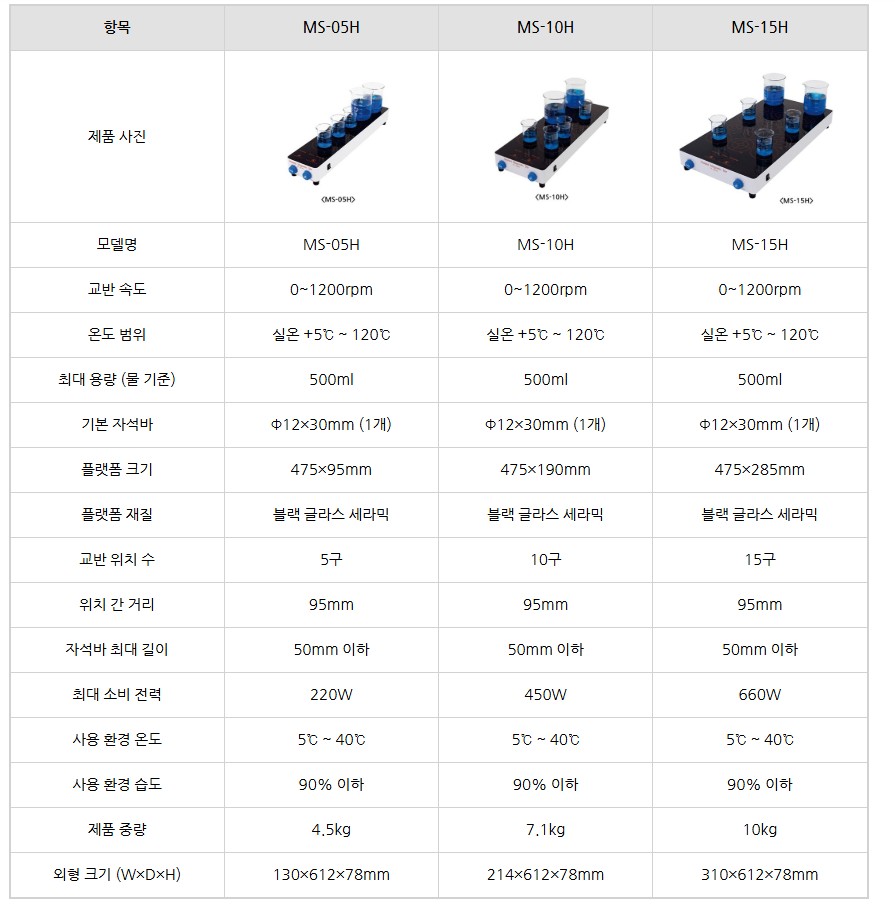

Model |
MS-05H |
MS-10H |
MS-15H |
Stirring Speed |
0rpm,100~1200rpm |
0rpm,100~1200rpm |
0rpm,100~1200rpm |
Temp. Range |
Ambient +5°C~120°C |
Ambient +5°C~120°C |
Ambient +5°C~120°C |
Max. Capacity (water) |
500ml |
500ml |
500ml |
Standard Stir Bar |
Φ12x30mm(1 pcs) / Φ0.47x1.18'' |
Φ12x30mm(1 pcs) / Φ0.47x1.18'' |
Φ12x30mm(1 pcs) / Φ0.47x1.18'' |
Platform Dimensions |
475x95mm |
475x190mm |
475x285mm |
18.70x3.74'' |
18.70x7.48'' |
18.70x11.22'' |
Platform Material |
Black glass-ceramic |
Black glass-ceramic |
Black glass-ceramic |
Number of Stirring Positions |
5 |
10 |
15 |
Distance between stirring positions |
95mm / 3.74'' |
95mm / 3.74'' |
95mm / 3.74'' |
Max. Length for Stir Bar |
≤50mm |
≤50mm |
≤50mm |
Max. Power |
220W |
450W |
660W |
Ambient |
5°C~40°C |
5°C~40°C |
5°C~40°C |
Humidity |
<90% |
<90% |
<90% |
Weight |
4.5kg |
7.1kg |
10kg |
Dimension External (W×D×H) |
130x612x78mm |
214x612x78mm |
310x612x78mm |
5.12x24.09x3.07'' |
8.43x24.09x3.07'' |
12.20x24.09x3.07'' |
