소형 반응 시스템, 필터부착형 Small Scale Filter Reactor Sytem, Unjacketed
■ Complete System : Stand와 Electronic 모터 포함
■ 100 mm PTFE Filter, 30 um (Pore)
■ Benchtop Hood 안에 설치 가능
| Cat. No. | Model | 용량 | Motor |
|---|
| R08-132-200 | 1959-U1000 | 1 L | Electric |
| R08-132-204 | 1959-U5000 | 5 L |

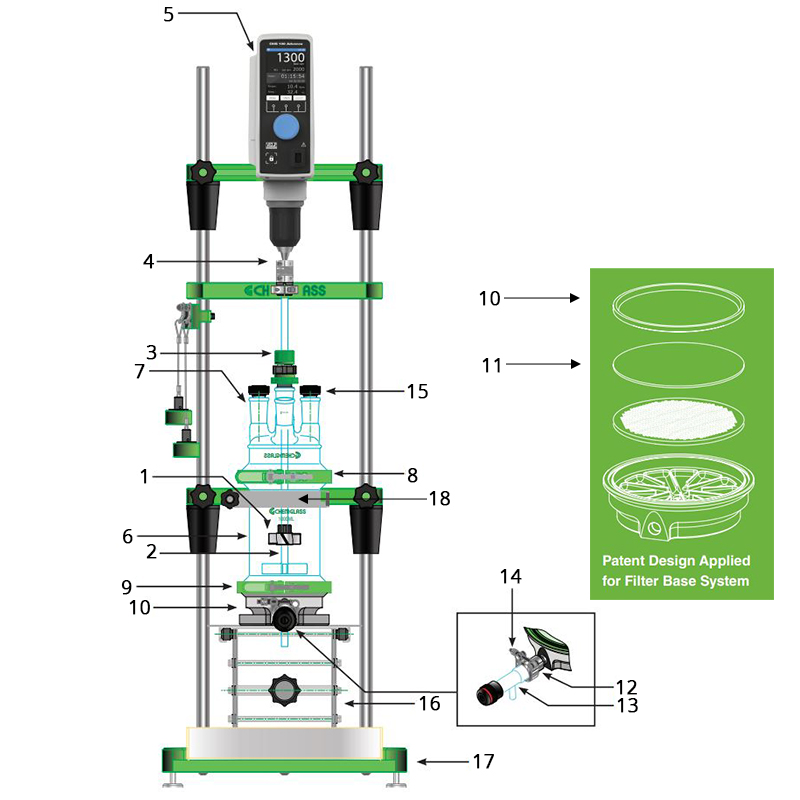

Standard Component, 1 L 반응기 구성품
| Cat. No. | Model | Description |
|---|
| R08-132-800 | 2095-X-102 | 50 mm PTFE Agitator, 60°Impeller Angle ① |
| R08-132-804 | 2075-U10 | 10 mm Stirring Shaft, 480 mm OAL, 4 Blade ② |
| R02-132-566 | 2077-G-21 | 10 mm PTFE Stirrer Bearing 24/40 ③ |
| R02-132-570 | 2044-C-14 | Compact Stirrer Shaft Coupling ④ |
| R02-132-579 | 2054-100 | Overhead Stirrer Remote 220V ⑤ |
| R08-132-816 | 1959-U02 | 1 L UnJacketed Filtration Vessel ⑥ |
| R08-132-820 | 1946-B-01 | Lid, 5-Neck, 100 mm Flange, 24/40 ⑦ |
| R02-132-576 | 141-T-12 | Quick Release Clamp, 100 mm Flange, PTFE Coated ⑧ |
| R08-132-824 | 147-82 | 100 mm Perfluoro O-ring ⑨ |
| R08-132-828 | 1949-F100 | 100 mm Filter Support Assembly, w/o Filter ⑩ |
| R08-132-832 | 1949-F103 | 100 mm PTFE Filter, 30 um ⑪ |
| R08-132-836 | 1964-A-10 | Glass-Filled PTFE Drain Adapter ⑫ |
| R02-132-782 | 1959-A-01 | Drain Valve ⑬ |
| R02-132-696 | 1968-66 | 1” Beaded Pipe Coupling ⑭ |
| R02-132-584 | 3002-L-24 | PTFE Stopper, 24/40 w/Loosening Ring ⑮ |
| R08-132-844 | 3059-F100 | 100 mm Filter Support Assembly Jack (16) |
| R02-132-526 | 1949-X-10 | Reactor Support Frame (17) |
| R02-132-586 | 1947-B100 | 100 mm SUS Reactor Clamp (18) |
Standard Component, 5 L 반응기 구성품
| Cat. No. | Model | Description |
|---|
| R02-132-632 | 2095-04 | 4” PTFE Agitator, 60°Impeller Angle ① |
| R08-132-806 | 2097-U50 | 19 mm Stirrer Shaft, 4 Blade Glass ② |
| R02-132-616 | 2077-G-24 | 19 mm PTFE Stirrer Bearing, 45/50 ③ |
| R02-132-571 | 2044-C-16 | Compact Stirrer Shaft Coupling ④ |
| R02-132-579 | 2054-100 | Overhead Stirrer Remote 220V ⑤ |
| R08-132-818 | 1959-U05 | 5 L UnJacketed Filtration Vessel ⑥ |
| R08-132-825 | 1946-B-11 | 5-Neck Lid, 150mm Flange, 45/50 ⑦ |
| R02-132-624 | 141-T-14 | 150 mm S.S Clamp, PTFE Coated ⑧ |
| R08-132-826 | 147-83 | 150 mm Perfluoro O-ring ⑨ |
| R08-132-830 | 1949-F150 | 150 mm Filter Support Assembly, w/o Filter ⑩ |
| R08-132-834 | 1949-F153 | 150 mm PTFE Filter, 30um ⑪ |
| R08-132-836 | 1964-A-10 | Glass-Filled PTFE Drain Adapter ⑫ |
| R02-132-782 | 1959-A-01 | Drain Valve ⑬ |
| R02-132-696 | 1968-66 | 1” Beaded Pipe Coupling ⑭ |
| R02-132-584 | 3002-L-24 | PTFE Stopper, 24/40 w/Loosening Ring ⑮ |
| R08-132-846 | 3059-F150 | 150 mm Filter Support Assembly Jack (16) |
| R02-132-526 | 1949-X-10 | Reactor Support Frame (17) |
| R02-132-587 | 1947-B150 | 150 mm SUS Reactor Clamp (18) |
※ 그 외 규격은 가격문의 바랍니다. ※
