진공 흡입 시스템 악세사리
Vacuum Aspiration System
A04-238-021
![f46187d591d437442e5a159ea9228678_1629793029_3791.jpg](/uploaded/webedit/2108/f46187d591d437442e5a159ea9228678_1629793029_3791.jpg)
![f46187d591d437442e5a159ea9228678_1629793029_621.jpg](/uploaded/webedit/2108/f46187d591d437442e5a159ea9228678_1629793029_621.jpg)
![f46187d591d437442e5a159ea9228678_1629793029_9214.jpg](/uploaded/webedit/2108/f46187d591d437442e5a159ea9228678_1629793029_9214.jpg)
![f46187d591d437442e5a159ea9228678_1629793030_6169.jpg](/uploaded/webedit/2108/f46187d591d437442e5a159ea9228678_1629793030_6169.jpg)
![f46187d591d437442e5a159ea9228678_1629793030_7632.jpg](/uploaded/webedit/2108/f46187d591d437442e5a159ea9228678_1629793030_7632.jpg)
![f46187d591d437442e5a159ea9228678_1629793031_0703.jpg](/uploaded/webedit/2108/f46187d591d437442e5a159ea9228678_1629793031_0703.jpg)
■ 주요특징
■ 액체 흡입과 추후 처리에 적합함
■ 진공 조절을 통한 Aspiration Speed 조절 ( 1ml/s - 15 ml/s )
■ 빠른 설치와 에오로졸이 넘치는 것을 방지하기 위한 Self-Closing Connector
■ 액체가 넘치는 것을 방지하기 위해 Level Sensor 내장
■ 멸균가능파트 : Waste Bottle, Handle, Tube
■ Size : w180×d240×h450 m, Power : 100~240 VAC, 50/60 Hz
■ 구성 : 본체, Single Needle(17100556, 17100557, 17100602, 17100603 4종), 8-channel Needle
■ DLAB
Spare Accessory
Cat. No | Model | Description |
---|
A04-238-021 | 17900115 | Vacuum Bottle, PPCO, 4L, 83B |

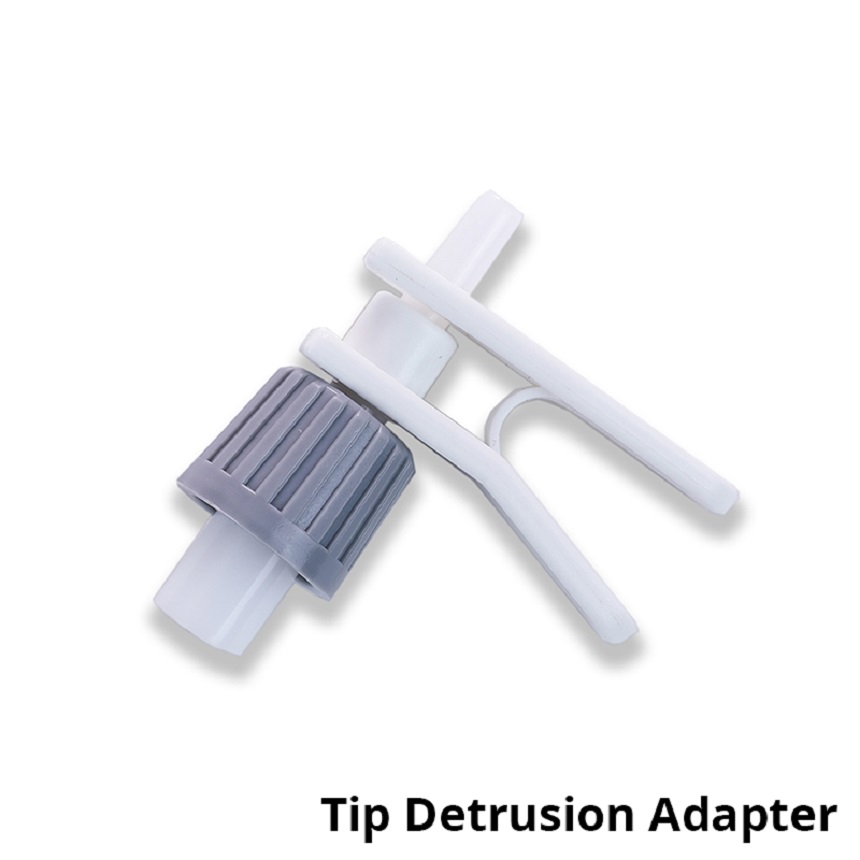

A04-238-023 | 17100578 | Tip Detrusion Adapter 200ul Tip |

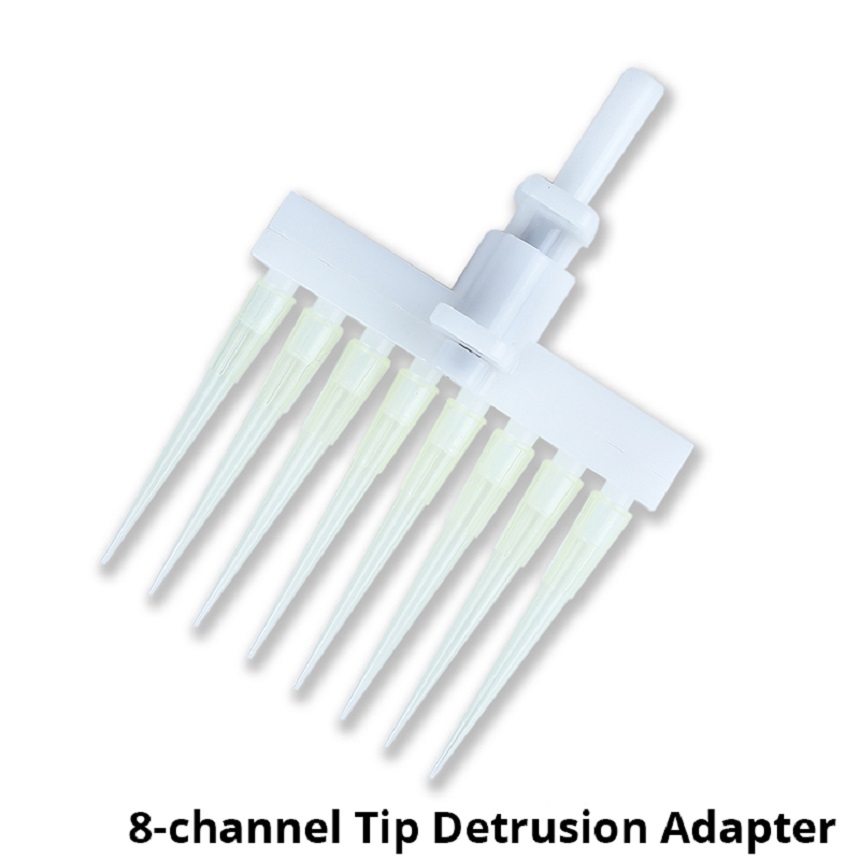

A04-238-025 | 17100577 | 8-channel Tip Detrusion Adapter 200ul Tip |

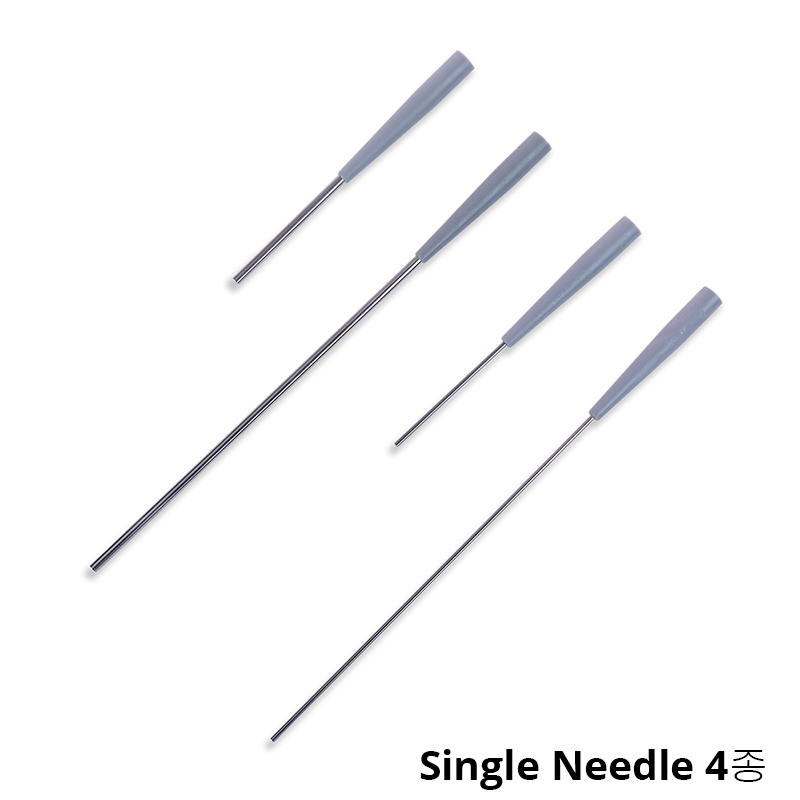

A04-238-027 | 17100556 | Single Needle Φ1.5mm, 40mm |
A04-238-029 | 17100557 | Single Needle Φ1.5mm, 120mm |
A04-238-031 | 17100602 | Single Needle Φ2.5mm, 40mm |
A04-238-033 | 17100603 | Single Needle Φ2.5mm, 120mm |

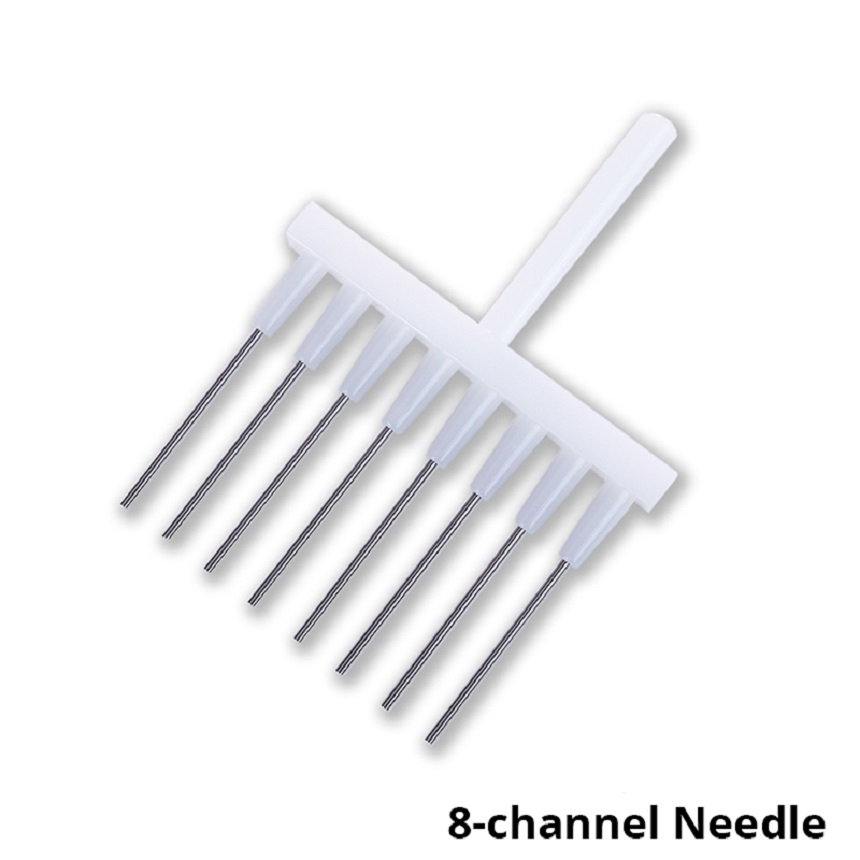

A04-238-035 | 17100360 | 8-channel Needle, Φ1.5mm |
A04-238-037 | 17100301 | Hydrophobic Filter, 0.45um, Φ 6mm |
