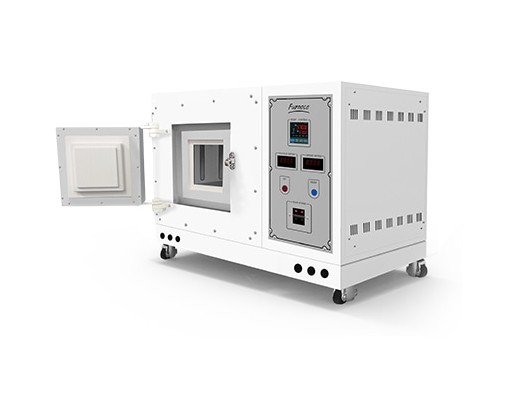

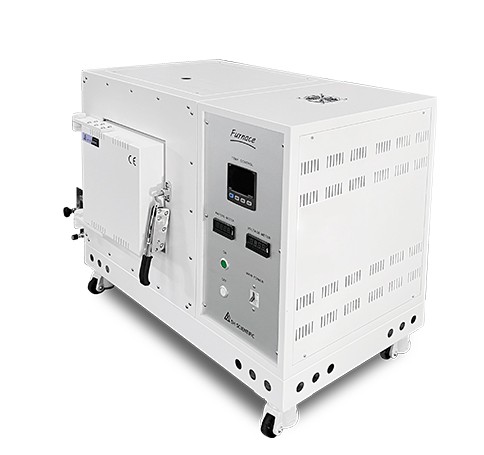

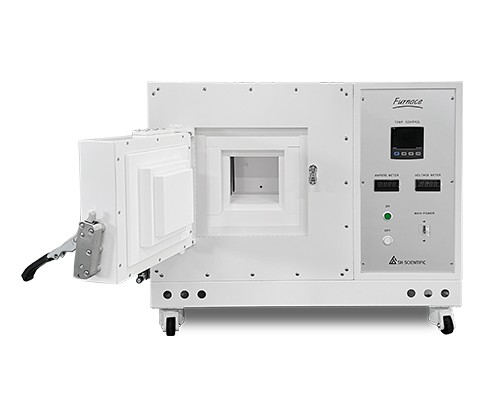

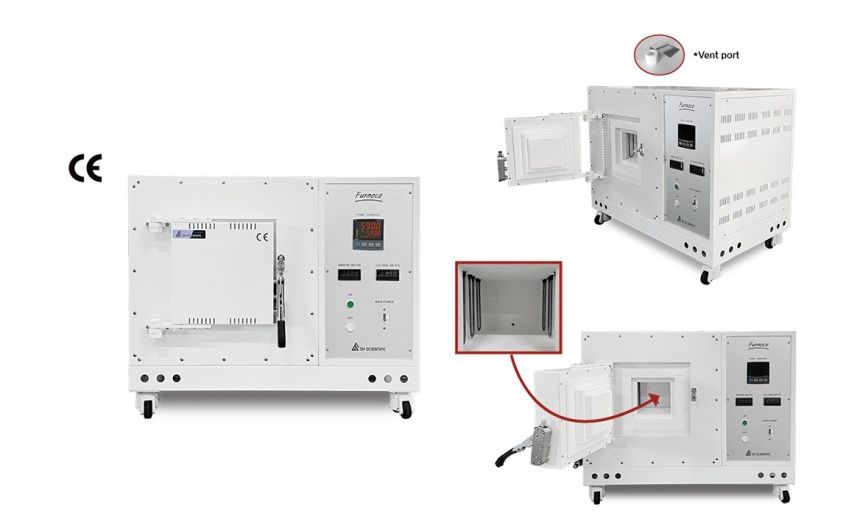

제품명 |
1700℃
머플 전기로 4.5 L |
1700℃
머플 전기로 11 L |

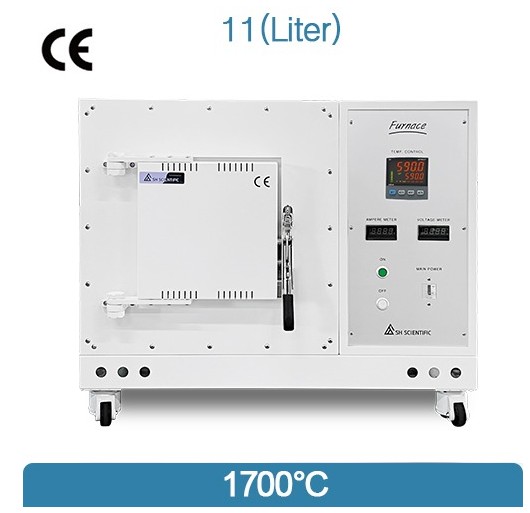

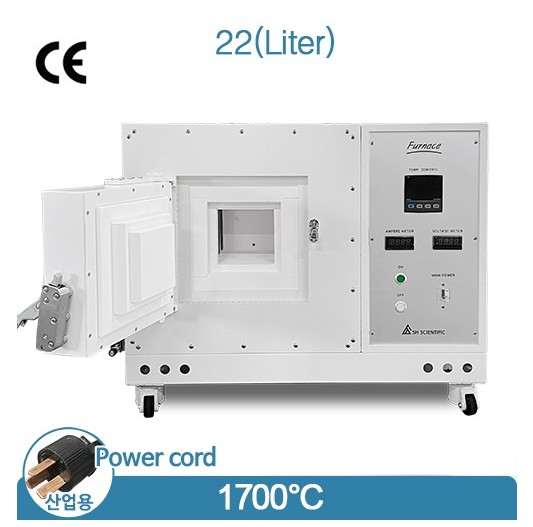

1700℃
머플 전기로 22 L |

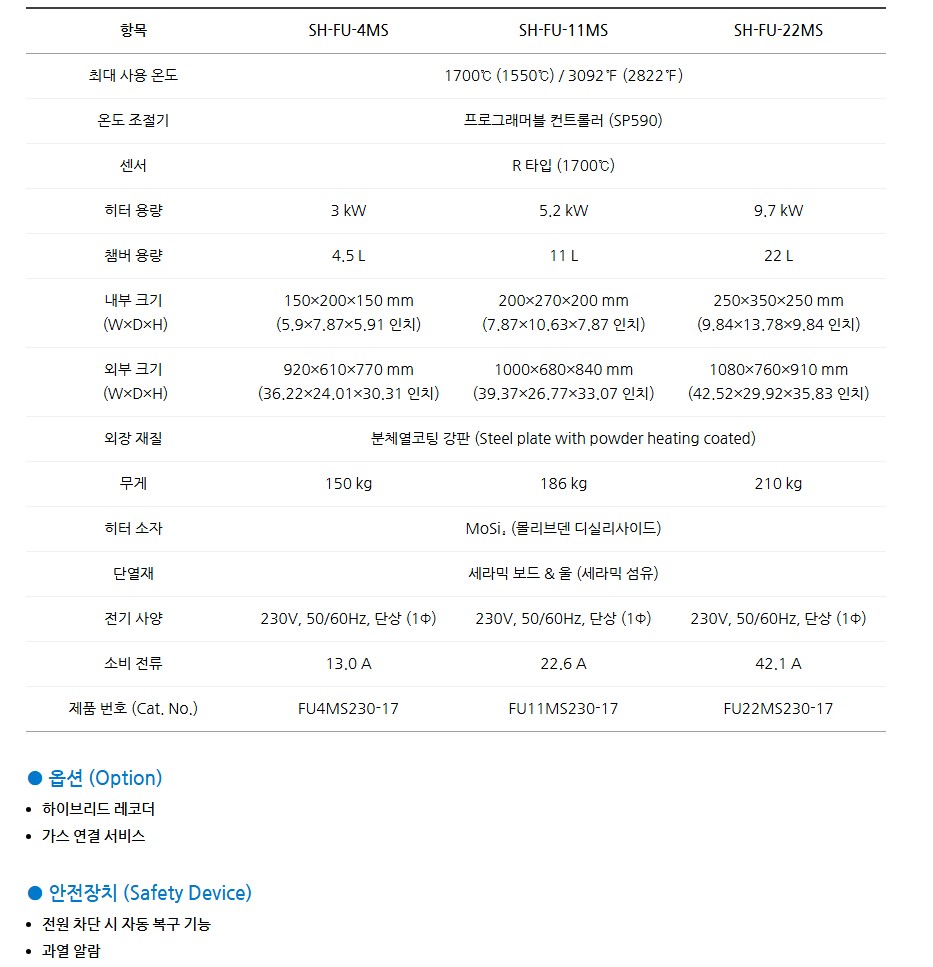

Model |
SH-FU-4MS |
SH-FU-11MS |
SH-FU-22MS |
Max Temp (최대사용온도) |
1700℃ (1550℃)/3092℉(2822℉) |
1700℃ (1550℃)/3092℉(2822℉) |
1700℃ (1550℃)/3092℉(2822℉) |
Temp Controller |
Programmable Controller(SP590) |
Programmable Controller(SP590) |
Programmable Controller(SP590) |
Sensor |
R type (1700℃) |
R type (1700℃) |
R type (1700℃) |
Heater Capa |
4.2 KW |
7.1 KW |
9.8 KW |
Capa |
4.5 L |
11 L |
22 L |
Dimension Internal |
150x200x150mm |
200x270x200mm |
250x350x250mm |
(W×D×H) |
5.91x7.87x5.91'' |
7.87x10.63x7.87'' |
9.84x13.78x9.84'' |
Dimension External |
920x610x770mm |
1000x680x840mm |
1080x760x910mm |
(W×D×H) |
36.22x24.01x30.31'' |
39.37x26.77x33.07'' |
42.52x29.92x35.83'' |
Material External |
Steel plate with powdr heating coated |
Steel plate with powdr heating coated |
Steel plate with powdr heating coated |
Weight |
150 Kg |
186 Kg |
210 Kg |
Heater Element |
MoSi2 |
MoSi2 |
MoSi2 |
Insulation |
Ceramic Board & Wool (Ceramic fiber) |
Ceramic Board & Wool (Ceramic fiber) |
Ceramic Board & Wool (Ceramic fiber) |
Electrical Requirements |
19.0 A |
30.8 A |
42.6 A |
230V
,50/60Hz, 1Φ |
Cat. No. |
FU4MS230-17 |
FU11MS230-17 |
FU22MS230-17 |
